179463-2 | AMP

Socket housing, 2 pole, pitch 3.96 mm, straight, red, 179463-2

Order No.: 34P6133
EAN: 4099889910551
MPN:
179463-2

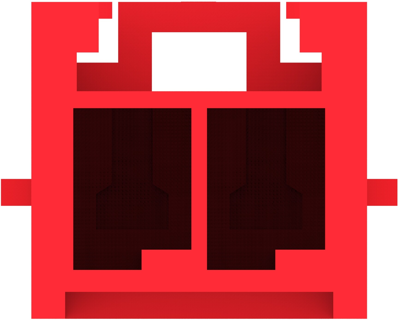

179463-2 AMP PCB Connection Systems Image 1

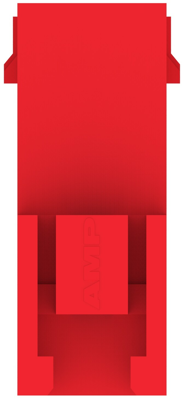

179463-2 AMP PCB Connection Systems Image 2

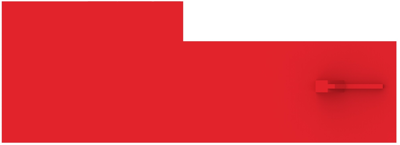

179463-2 AMP PCB Connection Systems Image 3

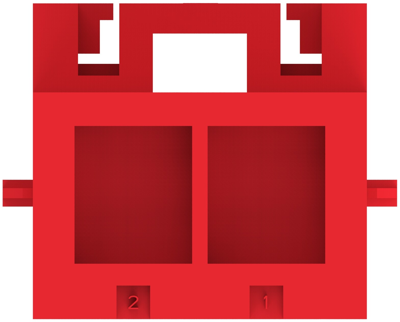

179463-2 AMP PCB Connection Systems Image 4

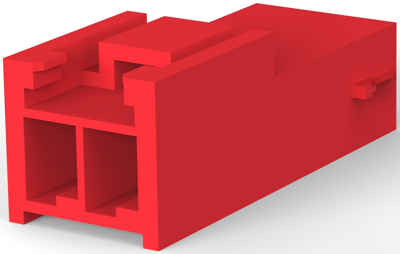

179463-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3808 € *
Available in 5 Days: 154,800 pcs. - if ordered today
Total Price:
1.90 € *
Price list
Quantity
Price per unit*
5 pcs.
0.3808 €
10 pcs.
0.3451 €
25 pcs.
0.3213 €
50 pcs.
0.2951 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 179463-2, AMP

Wire-to-Wire, Wire & Cable, 2 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Male
  • Housing Material: Nylon 6/6
  • Housing Color: red
  • Number of positions: 2
  • Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
  • Centerline (Pitch): 3.96 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Grid 3.96 mm
Contact type tab
Version socket housing
Rated voltage 300 V
Orientation straight
Type of locking Yes
Additional parts unequipped
Number of rows 1
Colour red
Pin number 2 pole
Connection crimp connection
Logistics
Property Value
Country of origin IN
Customs tariff number 85389091
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
