179228-3 | AMP

Socket housing, 3 pole, pitch 2 mm, straight, natural, 179228-3

Order No.: 36P6882
EAN: 4099889946581
MPN:
179228-3

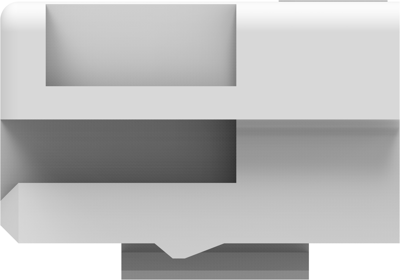

179228-3 AMP PCB Connection Systems Image 1

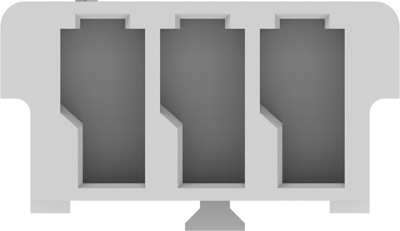

179228-3 AMP PCB Connection Systems Image 2

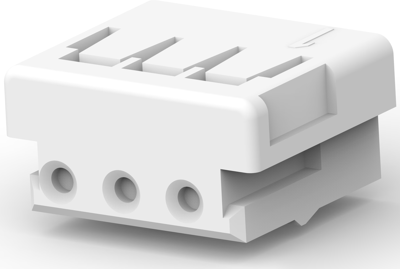

179228-3 AMP PCB Connection Systems Image 3

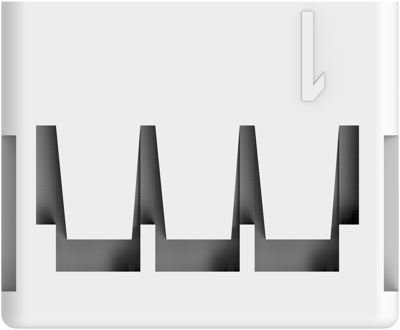

179228-3 AMP PCB Connection Systems Image 4

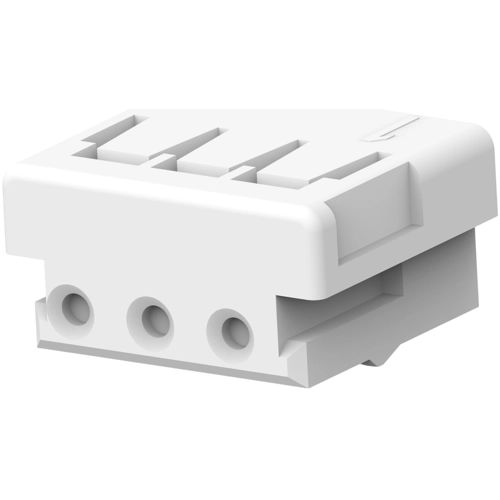

179228-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2011 € *
Available: 300 pcs.
Available in 5 Days: 308,534 pcs. - if ordered today
Total Price:
20.11 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2011 €
250 pcs.
0.1856 €
500 pcs.
0.1725 €
1000 pcs.
0.1559 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 179228-3, AMP

Wire-to-Board, Wire-to-Wire, Wire & Cable, 3 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Thermoplastic
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 3
  • Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
  • Insulation Resistance: 1000 MΩ
  • Centerline (Pitch): 2 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Grid 2 mm
Contact type socket
contact surface tin-plated
Version socket housing
Rated current 4 A
Rated voltage 150 V
Orientation straight
Number of rows 1
Colour natural
Pin number 3 pole
Connection crimp connection
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
