178964-7 | AMP

Plug housing, 16 pole, pitch 3.81 mm, straight, black, 178964-7

Order No.: 38P7186
EAN: 4099889975222
MPN:
178964-7
Series: DYNAMIC

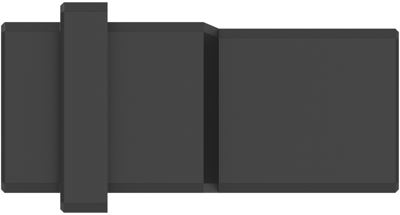

178964-7 AMP PCB Connection Systems Image 1

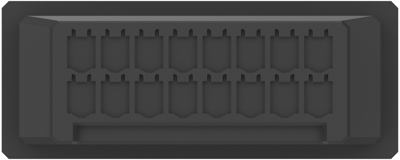

178964-7 AMP PCB Connection Systems Image 2

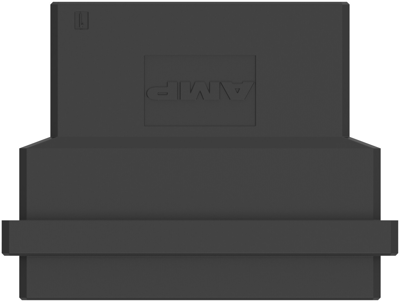

178964-7 AMP PCB Connection Systems Image 3

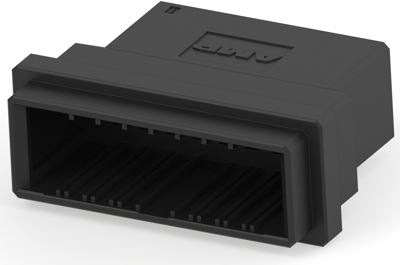

178964-7 AMP PCB Connection Systems Image 4
178964-7 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
4.0222 € *
Available: 60 pcs.
Available in 5 Days: 55 pcs. - if ordered today
Total Price:
4.02 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.0222 €

PCB Connection System, 178964-7, AMP

Wire-to-Wire, Wire & Cable, 16 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Male
  • Housing Material: Polyester GF
  • Housing Color: black
  • Number of positions: 16
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 3.81 mm
  • Row-to-Row Spacing: 5.08 mm [0.2 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Pin number 16 pole
Number of rows 2
Type of locking Yes
Version plug housing
Grid 3.81 mm
Additional parts unequipped
Contact type tab
Orientation straight
Rated voltage 150 V
Connection crimp connection
Colour black
Rated current 3 A
Logistics
Customs tariff number 85472000
Country of origin CN
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
