178499-1 | AMP

Pin header, 6 pole, pitch 3.96 mm, angled, natural, 178499-1

Order No.: 34P6104
EAN: 4099889910391
MPN:
178499-1

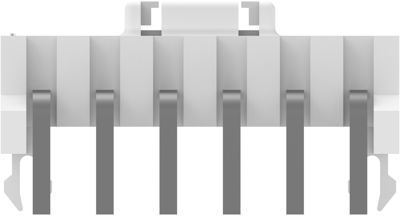

178499-1 AMP PCB Connection Systems Image 1

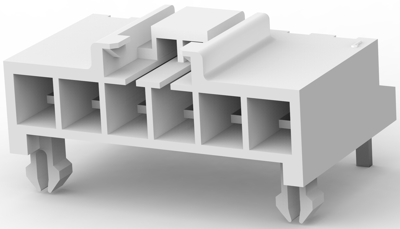

178499-1 AMP PCB Connection Systems Image 2

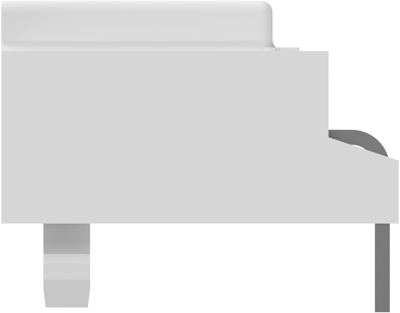

178499-1 AMP PCB Connection Systems Image 3

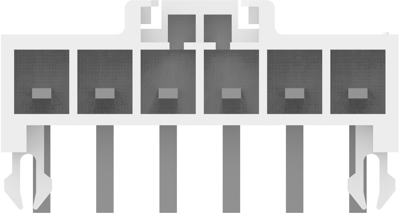

178499-1 AMP PCB Connection Systems Image 4
178499-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.0948 € *
Standard delivery time from the manufacturer is: 36 Weeks
Total Price:
5.47 € *
Price list
Quantity
Price per unit*
5 pcs.
1.0948 €
10 pcs.
1.0115 €
25 pcs.
0.9401 €
50 pcs.
0.8568 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 178499-1, AMP

Wire-to-Board, Printed Circuit Board, Right Angle, 6 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Nylon 6/6 GF
  • Housing Color: natural
  • Orientation: angled
  • Number of positions: 6
  • Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
  • Rated current: 9 A
  • Centerline (Pitch): 3.96 mm
  • Sealable: No
Technical specifications
Filter Property Value
Number of rows 1
Rated current 9 A
Contact type pin
Connection plating tin-plated
Grid 3.96 mm
Pin number 6 pole
Orientation angled
Rated voltage 150 V
Additional parts equipped
Type of locking Yes
Connection solder pin
contact surface tin-plated
Colour natural
Version pin header
Logistics
Property Value
Customs tariff number 85366990
Country of origin GB
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
