178481-1 | AMP

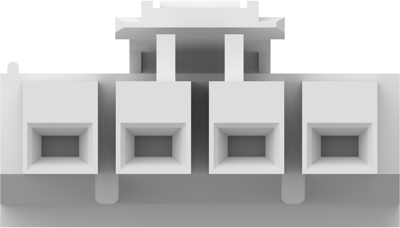

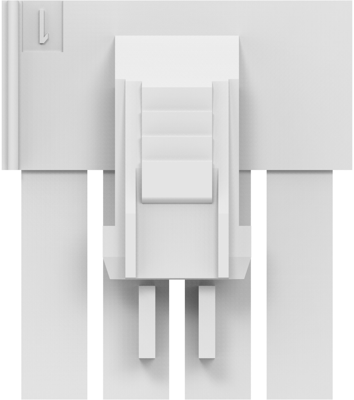

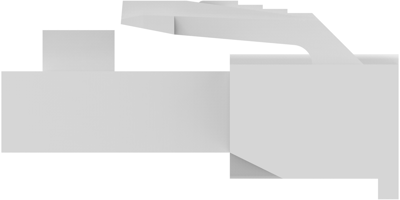

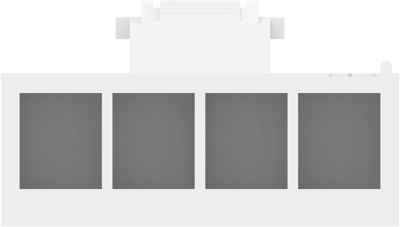

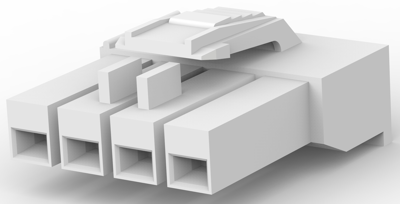

Plug housing, 4 pole, pitch 3.96 mm, straight, natural, 178481-1
Unit Price (€ / pc.)
0.3927 € *
Available: 0 pcs.
Available in 5 Days: 24,435 pcs.
Leadtime: 1 Week **
Total Price:
0.39 € *
Price list
Quantity
Price per unit*
250 pcs.
0.3927 €
1200 pcs.
0.3332 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 178481-1, AMP
Wire-to-Wire, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Contact Base Material: Copper Alloy
- Housing Material: Nylon 6/6
- Housing Color: natural
- Number of positions: 4
- Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
- Insulation Resistance: 1000 MΩ
- Centerline (Pitch): 3.96 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | crimp connection | |
| Number of rows | 1 | |
| Version | plug housing | |
| Additional parts | unequipped | |
| Colour | natural | |
| Contact type | socket | |
| Rated voltage | 150 V | |
| Rated current | 7 A | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Grid | 3.96 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
