178478-1 | AMP

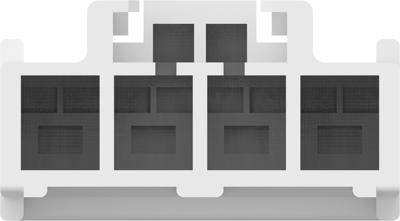

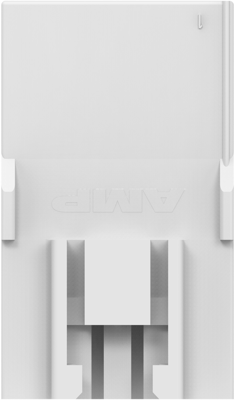

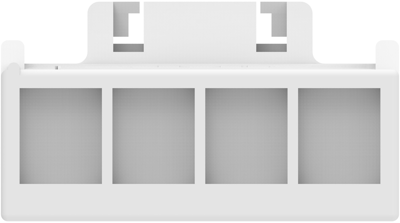

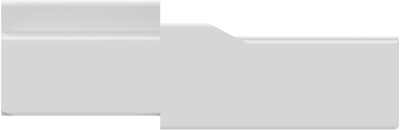

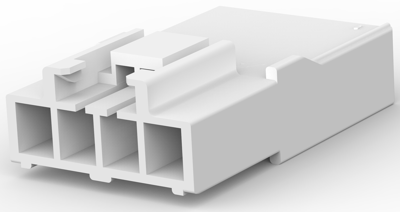

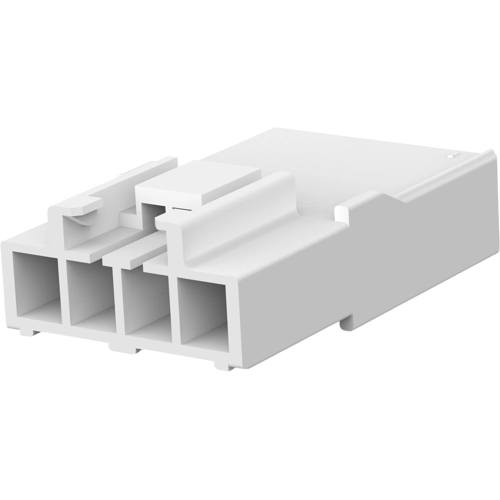

Socket housing, 4 pole, pitch 3.96 mm, straight, natural, 178478-1
Unit Price (€ / pc.)
0.4046 € *
Next delivery: 980 pcs. on 2025-08-08
Available in 5 Days: 10,487 pcs. - if ordered today
Total Price:
2.02 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4046 €
10 pcs.
0.3808 €
25 pcs.
0.3570 €
50 pcs.
0.3213 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 178478-1, AMP
Wire-to-Wire, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: Nylon 6/6
- Housing Color: natural
- Number of positions: 4
- Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
- Insulation Resistance: 1000 MΩ
- Centerline (Pitch): 3.96 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 4 pole | |
| Rated voltage | 150 V | |
| Additional parts | unequipped | |
| Connection | crimp connection | |
| Number of rows | 1 | |
| Version | socket housing | |
| Rated current | 7 A | |
| Contact type | tab | |
| Type of locking | Yes | |
| Colour | natural | |
| Grid | 3.96 mm | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
