178289-6 | AMP

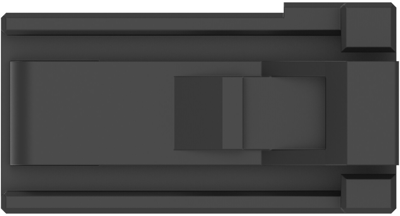

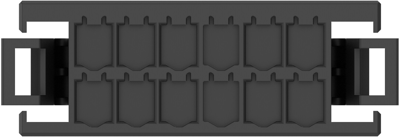

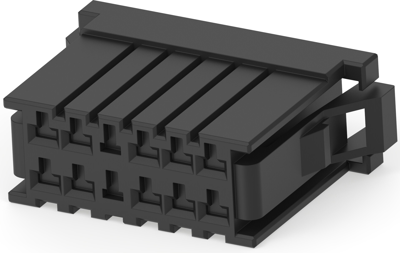

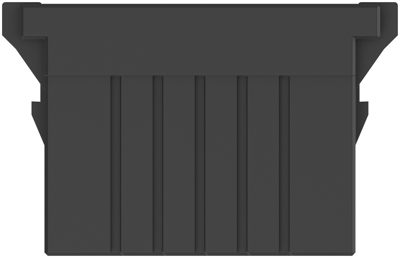

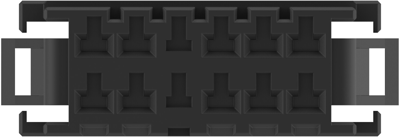

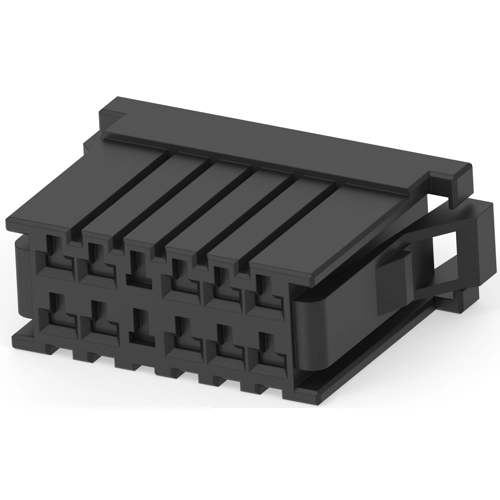

Socket header, 12 pole, pitch 3.81 mm, straight, black, 178289-6
Unit Price (€ / pc.)
1.9754 € *
Available: 769 pcs.
Available in 5 Days: 8,997 pcs. - if ordered today
Total Price:
9.88 € *
Price list
Quantity
Price per unit*
5 pcs.
1.9754 €
10 pcs.
1.8326 €
25 pcs.
1.7017 €
50 pcs.
1.5470 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 178289-6, AMP
Wire-to-Board, Wire-to-Panel, Wire-to-Wire, Wire & Cable, 12 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Polyester GF
- Housing Color: black
- Number of positions: 12
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 3.81 mm
- Row-to-Row Spacing: 5.08 mm [0.2 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.81 mm | |
| Contact type | socket | |
| Version | socket header | |
| Rated voltage | 150 V | |
| Orientation | straight | |
| Additional parts | unequipped | |
| Number of rows | 2 | |
| Colour | black | |
| Pin number | 12 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
