178125-9 | AMP

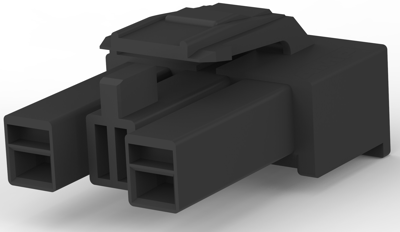

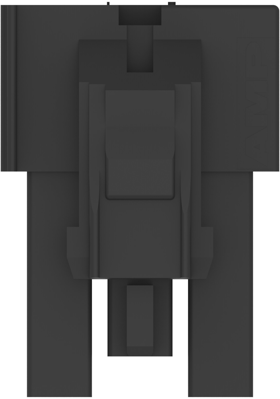

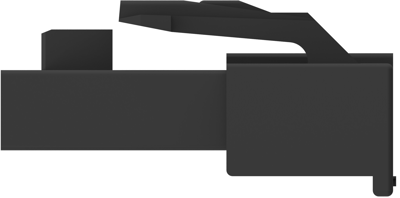

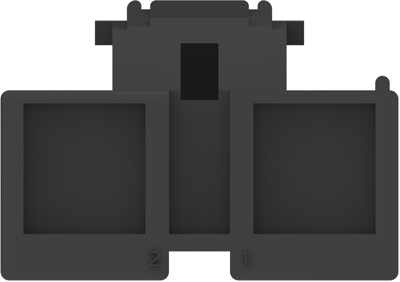

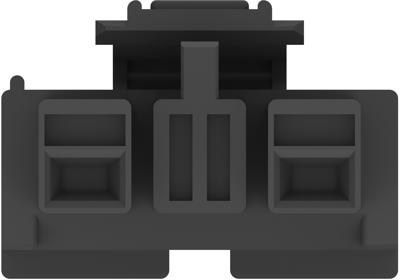

Plug housing, 2 pole, pitch 7.92 mm, straight, black, 178125-9
Unit Price (€ / pc.)
0.8925 € *
Available in 5 Days: 9,985 pcs. - if ordered today
Total Price:
223.13 € *
Price list
Quantity
Price per unit*
250 pcs.
0.8925 €
2000 pcs.
0.8568 €
*incl. VAT plus shipping costs
Subject to prior sale
Rectangular connector, 178125-9, AMP
Rectangular power connector, Housing, Plug, Wire-to-Wire/Wire-to-Board, 2 Position, 7.92 mm Centerline, Wire & Cable.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 7.92 mm | |
| Contact type | socket | |
| Connection | crimp connection | |
| Rated voltage | 300 V | |
| Orientation | straight | |
| Number of rows | 1 | |
| Type of locking | Yes | |
| Pin number | 2 pole | |
| Additional parts | unequipped | |
| Colour | black | |
| Version | plug housing | |
| Rated current | 7 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SG |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
