178125-1 | AMP

Plug housing, 2 pole, pitch 7.92 mm, straight, natural, 178125-1

Order No.: 34P6221
EAN: 4099889911282
MPN:
178125-1

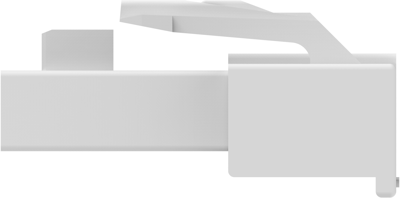

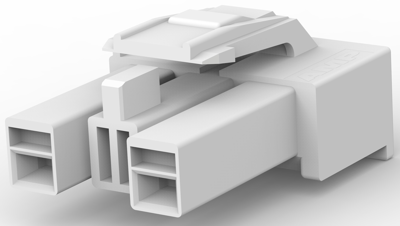

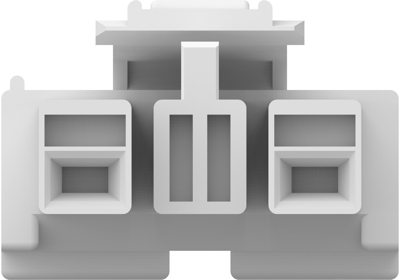

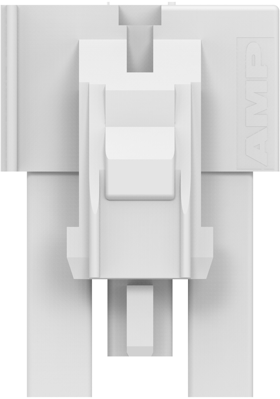

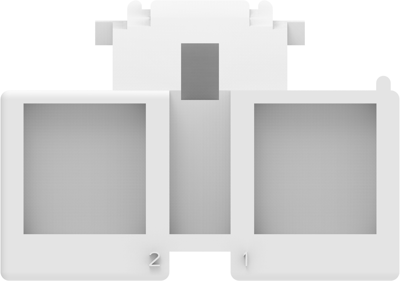

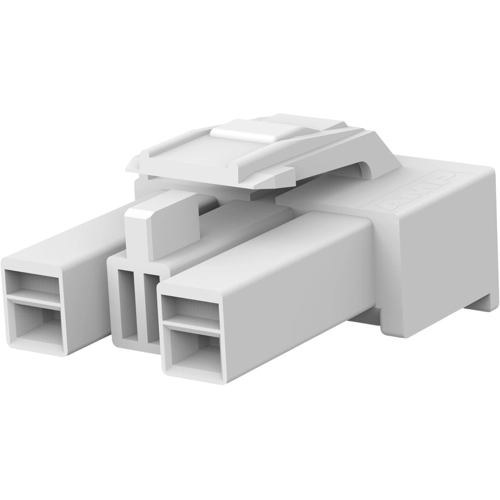

178125-1 AMP PCB Connection Systems Image 1
178125-1 AMP PCB Connection Systems Image 2
178125-1 AMP PCB Connection Systems Image 3
178125-1 AMP PCB Connection Systems Image 4
178125-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4046 € *
Available in 5 Days: 4,600 pcs. - if ordered today
Total Price:
2.02 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4046 €
10 pcs.
0.3689 €
25 pcs.
0.3451 €
50 pcs.
0.3213 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 178125-1, AMP

Wire-to-Board, Wire-to-Wire, Wire & Cable, 2 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Contact Base Material: Copper Alloy
  • Housing Material: Nylon 6/6
  • Housing Color: natural
  • Number of positions: 2
  • Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
  • Insulation Resistance: 1000 MΩ
  • Centerline (Pitch): 7.92 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Number of rows 1
Rated current 7 A
Contact type socket
Grid 7.92 mm
Pin number 2 pole
Orientation straight
Rated voltage 150 V
Additional parts unequipped
Type of locking Yes
Connection crimp connection
Colour natural
Version plug housing
Logistics
Property Value
Customs tariff number 85472000
Country of origin IN
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
