177913-1 | AMP

Socket housing, 12 pole, pitch 3.96 mm, straight, natural, 177913-1

Order No.: 34P6170
EAN: 4099889910896
MPN:
177913-1

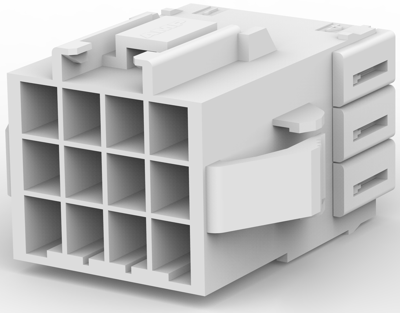

177913-1 AMP PCB Connection Systems Image 1

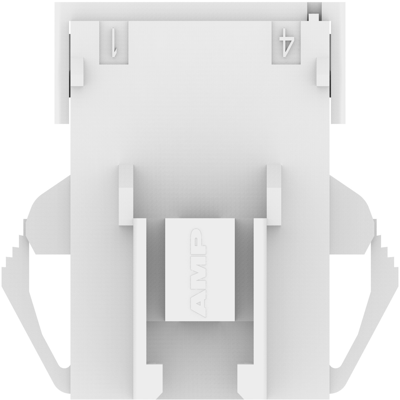

177913-1 AMP PCB Connection Systems Image 2

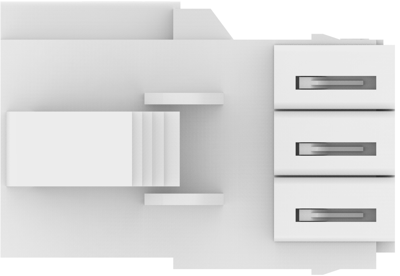

177913-1 AMP PCB Connection Systems Image 3

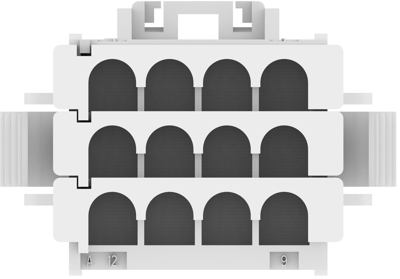

177913-1 AMP PCB Connection Systems Image 4

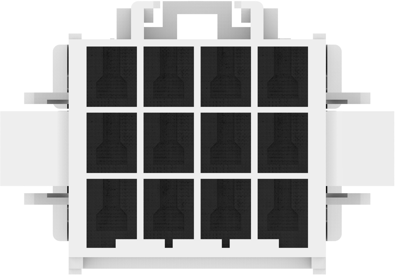

177913-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.3566 € *
Available in 5 Days: 1,700 pcs. - if ordered today
Total Price:
6.78 € *
Price list
Quantity
Price per unit*
5 pcs.
1.3566 €
10 pcs.
1.2614 €
25 pcs.
1.1662 €
50 pcs.
1.0591 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 177913-1, AMP

Wire-to-Panel, Wire-to-Wire, Wire & Cable, 12 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Male
  • Housing Material: Nylon 6/6
  • Housing Color: natural
  • Number of positions: 12
  • Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
  • Centerline (Pitch): 3.96 mm
  • Row-to-Row Spacing: 4.6 mm [0.181 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Filter Property Value
Grid 3.96 mm
Contact type tab
Version socket housing
Rated voltage 300 V
Orientation straight
Type of locking Yes
Number of rows 3
Colour natural
Pin number 12 pole
Connection crimp connection
Logistics
Property Value
Country of origin IN
Customs tariff number 85389091
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
