176283-9 | AMP

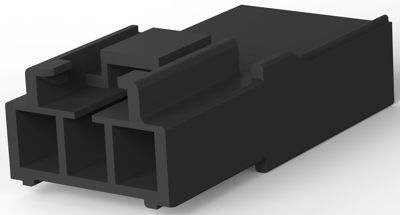

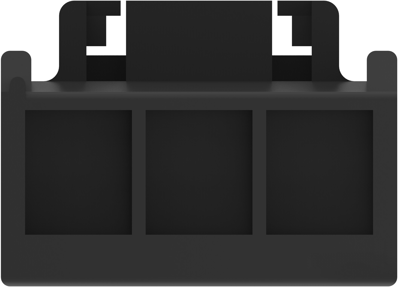

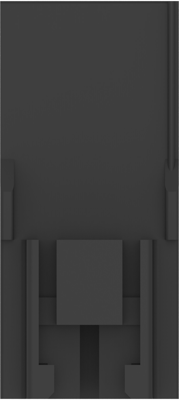

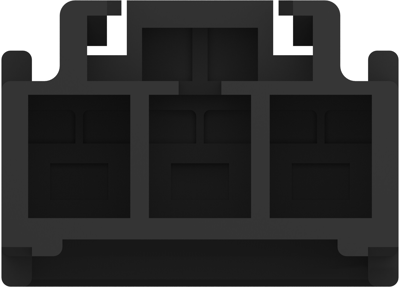

Socket housing, 3 pole, pitch 3.96 mm, straight, black, 176283-9
Order No.: 34P6202
EAN: 4099889911114
MPN:
176283-9
Unit Price (€ / pc.)
0.2118 € *
Available: 0 pcs.
Leadtime: 25 Weeks **
Total Price:
2,118.20 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10000 pcs.
0.2118 €
PCB Connection System, 176283-9, AMP
Wire-to-Wire, Wire & Cable, 3 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: Nylon 6/6
- Housing Color: black
- Number of positions: 3
- Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
- Insulation Resistance: 1000 MΩ
- Centerline (Pitch): 3.96 mm
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Colour | black | |
| Type of locking | Yes | |
| Rated current | 7 A | |
| Grid | 3.96 mm | |
| Pin number | 3 pole | |
| Version | socket housing | |
| Additional parts | unequipped | |
| Orientation | straight | |
| Connection | crimp connection | |
| Contact type | tab | |
| Rated voltage | 150 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85389091 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
