176271-6 | AMP

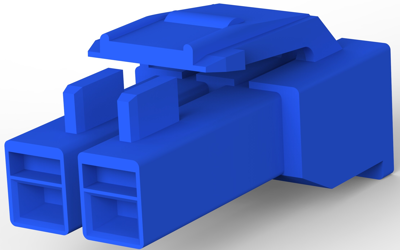

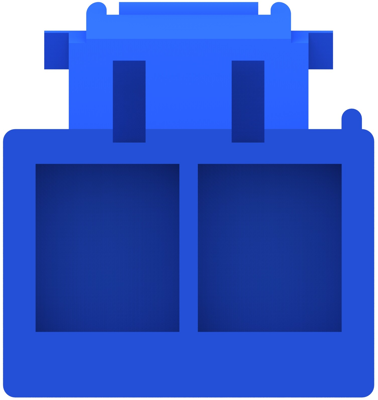

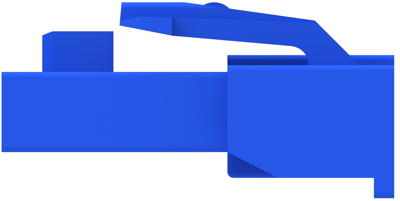

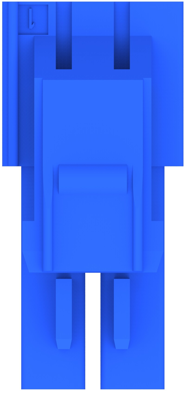

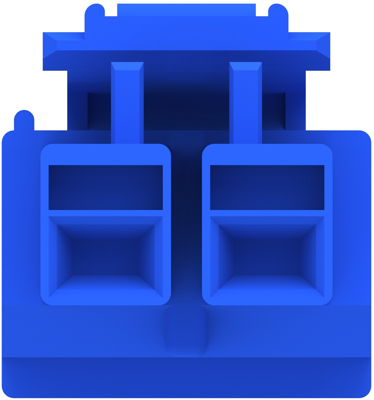

Plug housing, 2 pole, pitch 3.96 mm, straight, blue, 176271-6
Unit Price (€ / pc.)
0.1464 € *
Available in 5 Days: 29,000 pcs. - if ordered today
Total Price:
14.64 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1464 €
250 pcs.
0.1345 €
500 pcs.
0.1249 €
1000 pcs.
0.1131 €
*incl. VAT plus shipping costs
Subject to prior sale
Rectangular connector, 176271-6, AMP
Rectangular power connector, Housing, Plug, Wire-to-Wire, 2 Position, 3.96 mm Centerline, Wire & Cable, UL 94V-0.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.96 mm | |
| Contact type | socket | |
| Version | plug housing | |
| Rated voltage | 300 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 1 | |
| Colour | blue | |
| Pin number | 2 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SG |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
