1761681-6 | AMP

Pin header, 16 pole, pitch 2.54 mm, straight, black, 1761681-6

Order No.: 36P5258
EAN: 4099889942286
MPN:
1761681-6
Series: AMP-LATCH

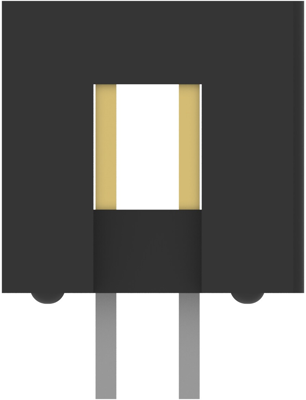

1761681-6 AMP PCB Connection Systems Image 1

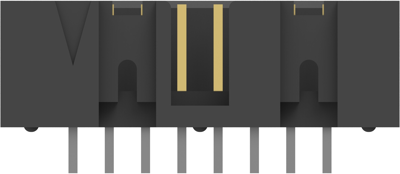

1761681-6 AMP PCB Connection Systems Image 2

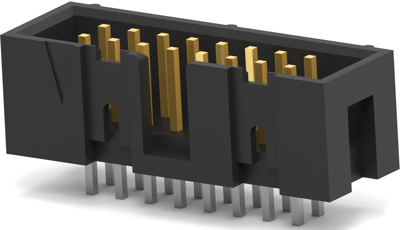

1761681-6 AMP PCB Connection Systems Image 3

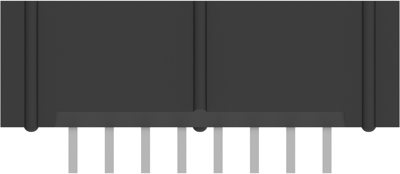

1761681-6 AMP PCB Connection Systems Image 4
1761681-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.8449 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
760.41 € *
*incl. VAT plus shipping costs
Subject to prior sale
900 pcs.
0.8449 €

PCB Connection System, 1761681-6, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 16 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Phosphor Bronze
  • Housing Material: PCT
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 16
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 1000 - 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
Technical specifications
Colour black
Type of locking Yes
contact surface gold-plated
Rated current 1 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 16 pole
Version pin header
Additional parts equipped
Orientation straight
Connection PCB connection
Contact type pin
Rated voltage 150 V
Number of rows 2
Logistics
Country of origin TH
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
