1761608-3 | AMP

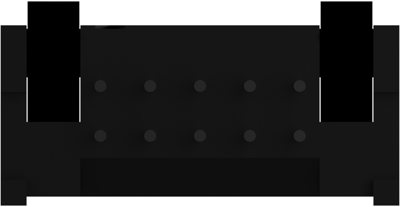

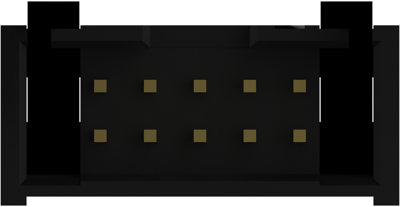

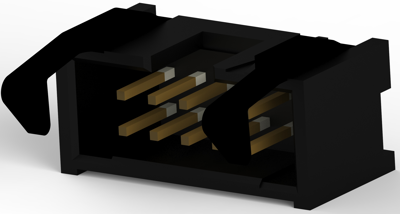

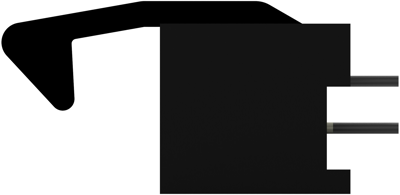

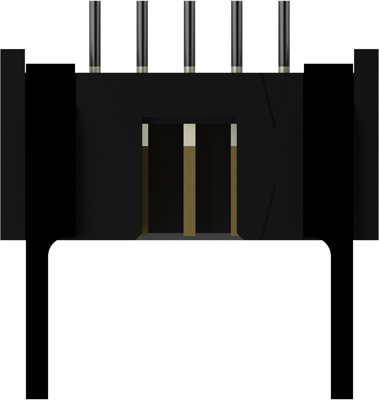

Pin header, 10 pole, pitch 2.54 mm, straight, black, 1761608-3
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
6.9853 € *
Available in 12 Days: 338 pcs. - if ordered today
Total Price:
6.99 € *
Price list
Quantity
Price per unit*
1 pcs.
6.9853 €
10 pcs.
6.2594 €
50 pcs.
5.8548 €
100 pcs.
5.4978 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin header, 1761608-3, AMP
Wire-to-Board, 10-Positions, 2.54 mm Centerline, Vertical, Through Hole - Solder, 2 Row, Plug.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 10 pole | |
| Grid | 2.54 mm | |
| Connection | PCB connection | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 150 V | |
| Rated current | 1 A | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
