175446-1 | AMP

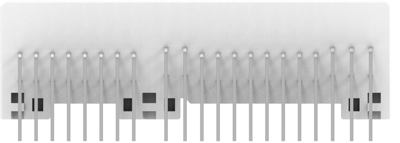

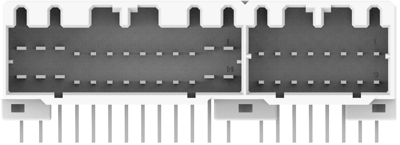

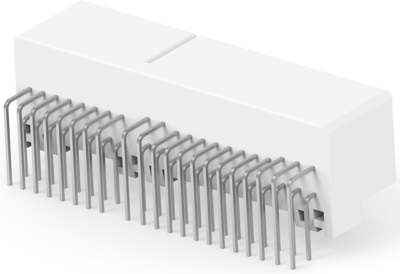

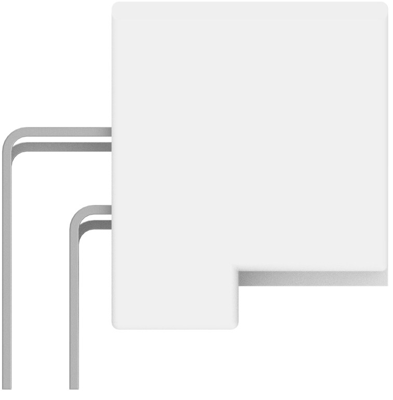

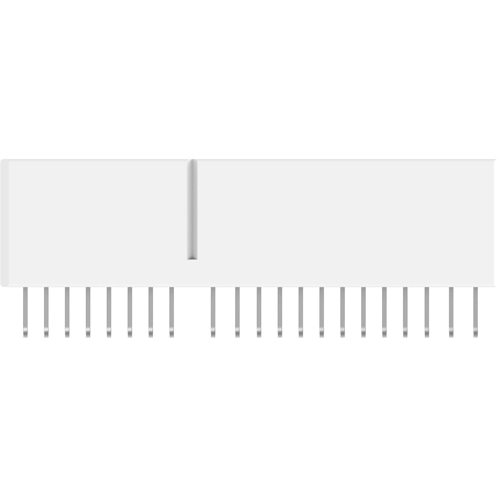

Connector, 42 pole, pitch 3 mm, angled, white, 175446-1
Unit Price (€ / pc.)
14.6251 € *
Available in 5 Days: 197 pcs. - if ordered today
Total Price:
14.63 € *
Price list
Quantity
Price per unit*
1 pcs.
14.6251 €
10 pcs.
13.5779 €
25 pcs.
12.6735 €
50 pcs.
11.5192 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Header, 175446-1, AMP
PCB Mount header, Horizontal, Wire-to-Board, 42 Position, 3.5 mm/3 mm/Centerline, Fully shrouded.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3 mm | |
| Pin number | 42 pole | |
| Colour | white | |
| Connection plating | tin-plated | |
| Contact type | tab | |
| Version | connector | |
| Connection | solder connection | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Rated voltage | 12 V | |
| contact surface | tin-plated | |
| Orientation | angled | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | KR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
