1747785-1 | AMP

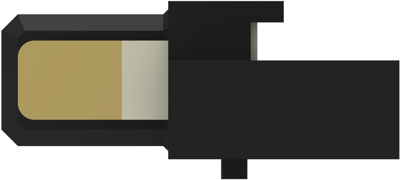

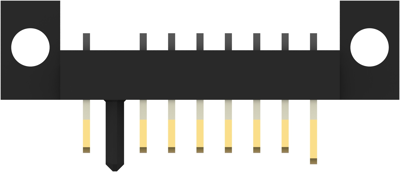

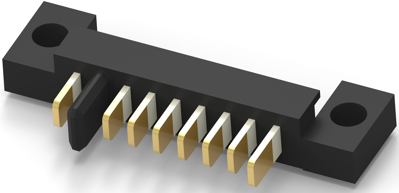

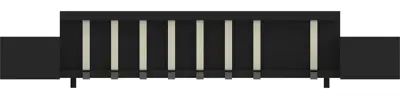

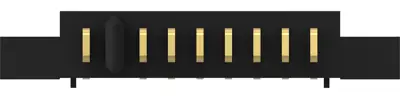

Pin header, 8 pole, pitch 2 mm, angled, black, 1747785-1
Order No.: 37P1605
EAN: 4099889953244
MPN:
1747785-1
Unit Price (€ / pc.)
2.0944 € *
Standard delivery time from the manufacturer is: 12 Weeks
PCB Connection System, 1747785-1, AMP
Board-to-Board, Printed Circuit Board, Right Angle, 8 Position
Technical Data
- Connector Mounting Type: Board Mount
- Orientation: angled
- Number of positions: 8
- Operating Temperature Range: -20 – 80 °C [-4 – 176 °F]
- Rated current: 8 A
- Centerline (Pitch): 2 mm
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 8 A | |
| contact surface | gold-plated | |
| Colour | black | |
| Additional parts | equipped | |
| Contact type | pin | |
| Grid | 2 mm | |
| Orientation | angled | |
| Rated voltage | 150 V | |
| Connection | solder pin | |
| Pin number | 8 pole | |
| Version | pin header | |
| Type of locking | Yes | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
