173977-2 | AMP

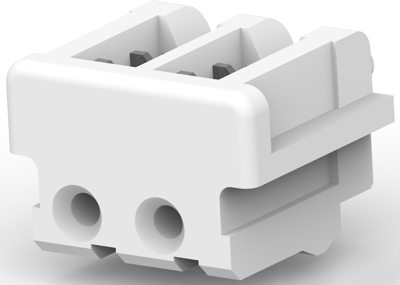

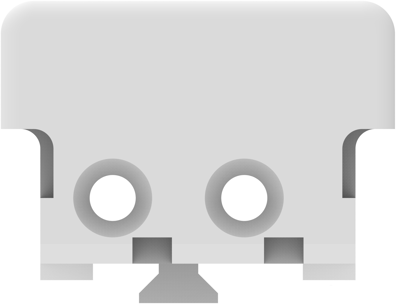

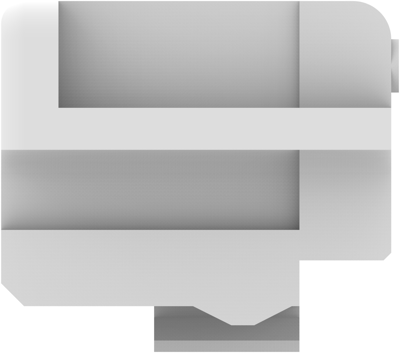

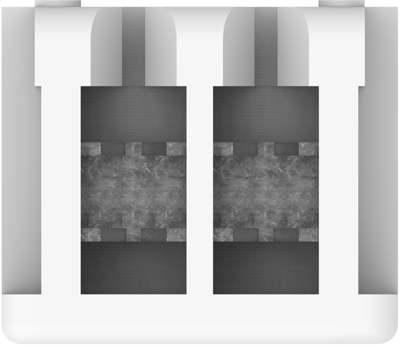

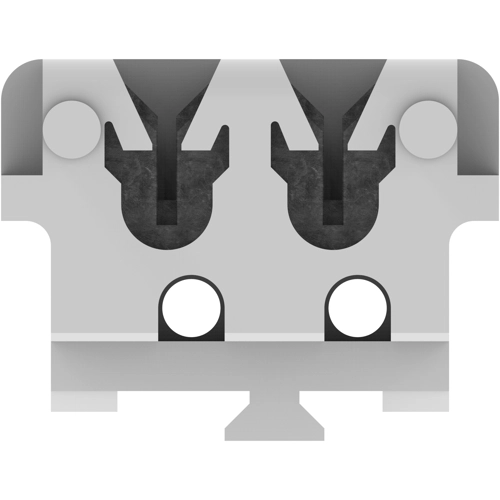

Socket housing, 2 pole, pitch 2 mm, straight, natural, 173977-2
Order No.: 36P6823
EAN: 4099889946420
MPN:
173977-2
Unit Price (€ / pc.)
0.1761 € *
Available in 5 Days: 351,707 pcs. - if ordered today
Total Price:
17.61 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1761 €
250 pcs.
0.1630 €
500 pcs.
0.1511 €
1000 pcs.
0.1369 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 173977-2, AMP
Wire-to-Board, Wire & Cable, 2 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Housing Material: PBT GF
- Housing Color: natural
- Number of positions: 2
- Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
- Rated current: 2 A
- Centerline (Pitch): 2 mm
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2 mm | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Version | socket housing | |
| Rated current | 2 A | |
| Rated voltage | 150 V | |
| Orientation | straight | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | natural | |
| Pin number | 2 pole | |
| Connection | IDC connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
