173924-1 | AMP

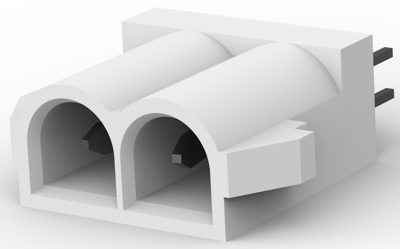

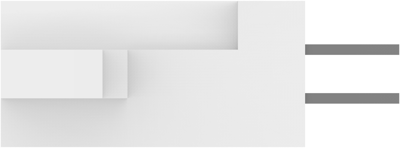

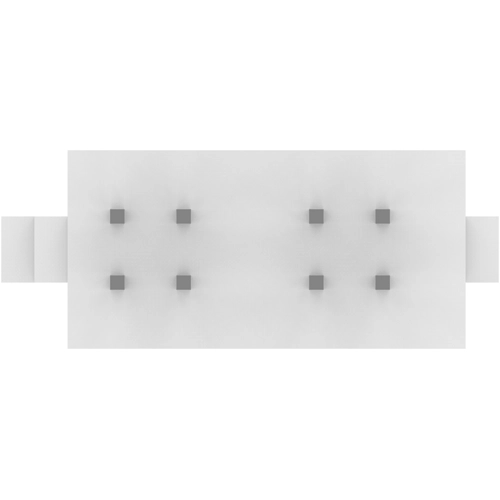

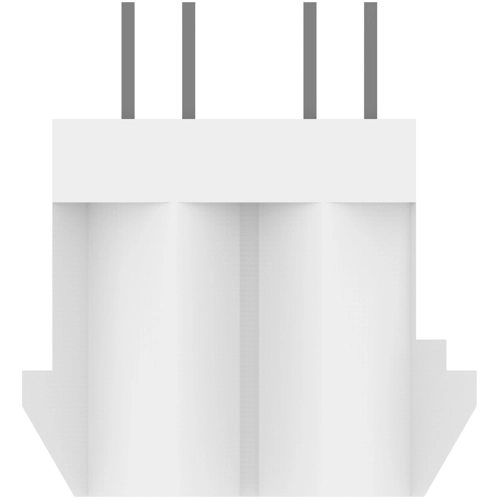

Pin header, 2 pole, pitch 6.35 mm, straight, black, 173924-1
Unit Price (€ / pc.)
5.8905 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
13,607.06 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2310 pcs.
5.8905 €
PCB Connection System, 173924-1, AMP
Wire-to-Board, Printed Circuit Board, Vertical, 2 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: Polyester - GF
- Housing Color: black
- Orientation: straight
- Number of positions: 2
- Operating Temperature Range: -25 – 85 °C [-13 – 185 °F]
- Rated current: 15 A
- Centerline (Pitch): 6.35 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | Press-fit | |
| Connection plating | verzinnt | |
| Number of rows | 1 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | schwarz | |
| Contact type | Stift | |
| contact surface | verzinnt | |
| Rated voltage | 150 V | |
| Rated current | 15 A | |
| Orientation | gerade | |
| Pin number | 2-polig | |
| Grid | 6.35 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
