1734099-5 | AMP

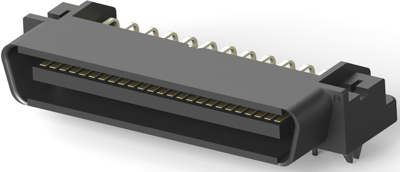

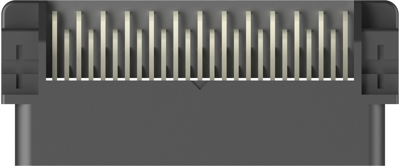

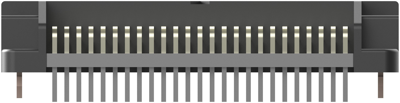

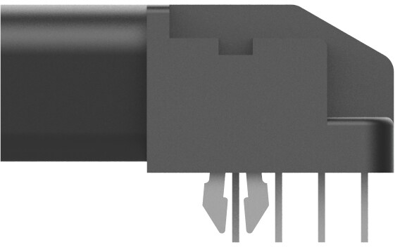

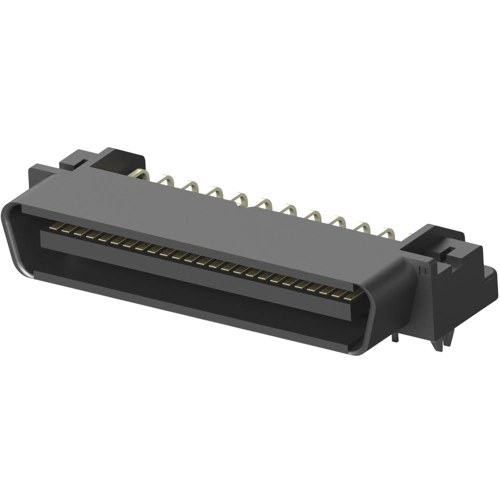

Pin header, 50 pole, pitch 1.27 mm, angled, black, 1734099-5
Unit Price (€ / pc.)
3.5105 € *
Standard delivery time from the manufacturer is: 6 Weeks
PCB Connection System, 1734099-5, AMP
Board-to-Board, Printed Circuit Board, Standard, Right Angle, 50 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Phosphor Bronze
- Housing Material: Matte
- Housing Color: black
- Orientation: angled
- Number of positions: 50
- Operating Temperature Range: -35 – 85 °C [-31 – 185 °F]
- Insulation Resistance: 4 MΩ
- Centerline (Pitch): 1.27 mm
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 1 A | |
| contact surface | gold-plated | |
| Colour | black | |
| Additional parts | equipped | |
| Contact type | pin | |
| Connection plating | tin-plated | |
| Grid | 1.27 mm | |
| Orientation | angled | |
| Rated voltage | 150 V | |
| Connection | PCB connection | |
| Pin number | 50 pole | |
| Version | pin header | |
| Type of locking | Yes | |
| Number of rows | 4 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
