1734099-4 | AMP

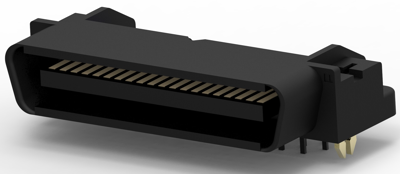

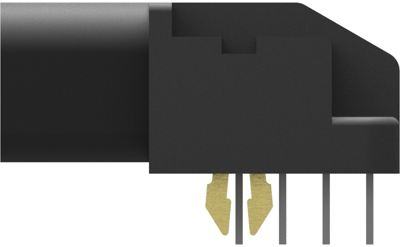

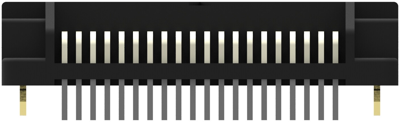

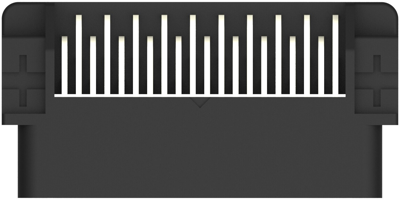

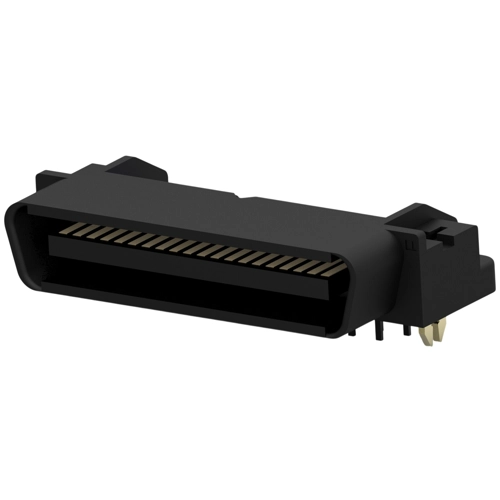

Pin header, 40 pole, pitch 1.27 mm, angled, black, 1734099-4
Unit Price (€ / pc.)
5.0099 € *
Available in 5 Days: 688 pcs. - if ordered today
Total Price:
5.01 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0099 €
10 pcs.
4.6053 €
50 pcs.
4.1412 €
100 pcs.
3.7366 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1734099-4, AMP
Board-to-Board, Printed Circuit Board, Right Angle, 40 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Phosphor Bronze
- Housing Material: Matte
- Orientation: angled
- Number of positions: 40
- Operating Temperature Range: -35 – 85 °C [-31 – 185 °F]
- Insulation Resistance: 4 MΩ
- Centerline (Pitch): 1.27 mm
- Row-to-Row Spacing: 1.905 mm [0.0749 in]
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Pin number | 40 pole | |
| Contact type | pin | |
| contact surface | gold-plated | |
| Type of locking | Yes | |
| Colour | black | |
| Rated current | 1 A | |
| Rated voltage | 150 V | |
| Connection | PCB connection | |
| Grid | 1.27 mm | |
| Orientation | angled | |
| Version | pin header | |
| Connection plating | tin-plated | |
| Additional parts | equipped | |
| Number of rows | 4 |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | TH |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
