172890-4 | AMP

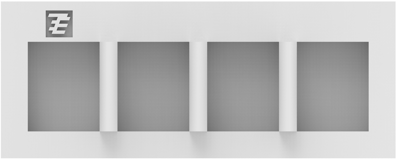

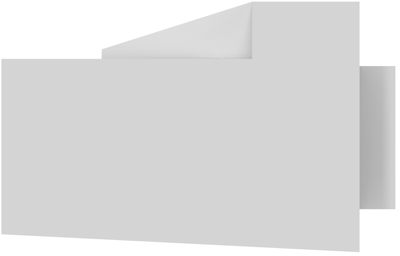

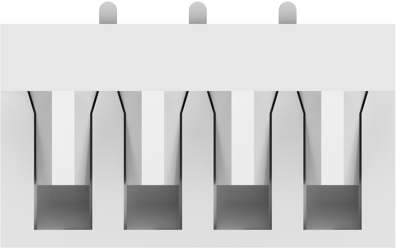

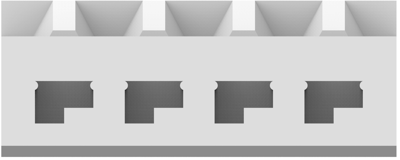

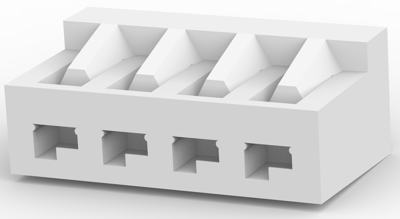

Plug housing, 4 pole, pitch 2 mm, straight, natural, 172890-4
Order No.: 71P3225
EAN: 4099891721961
MPN:
172890-4
Unit Price (€ / pc.)
0.3451 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
1.73 € *
Price list
Quantity
Price per unit*
5 pcs.
0.3451 €
10 pcs.
0.3213 €
25 pcs.
0.2951 €
50 pcs.
0.2678 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug housing, 172890-4, AMP
The 172890-4 is designed not as an electrical terminal but as a mechanical holding device to enhance soldering of hookup wires to Printed circuit boards. This product's combination of terminal and application tooling eliminates costly manual preparation of wires prior to soldering, and positions the wire to achieve reliable solder joints. Movement of the wire during soldering is restricted, providing for proper solder flow.
Features
- Low applied cost
- Total height above pc board
- Insulation support provides strain relief for wire and protection of solder joint
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of rows | 1 | |
| Contact type | pin | |
| Grid | 2 mm | |
| Pin number | 4 pole | |
| Orientation | straight | |
| Rated voltage | 250 V | |
| Additional parts | unequipped | |
| Type of locking | No | |
| Connection | crimp connection | |
| Colour | natural | |
| Version | plug housing |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Melamine |
| SVHC free | No |
