172520-4 | AMP

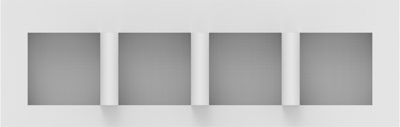

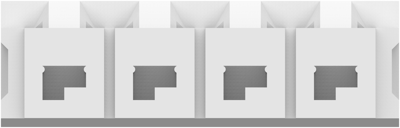

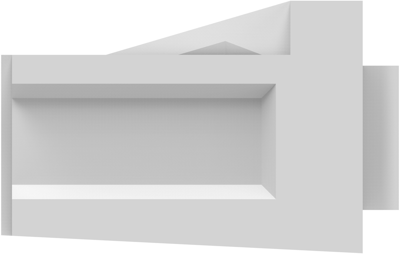

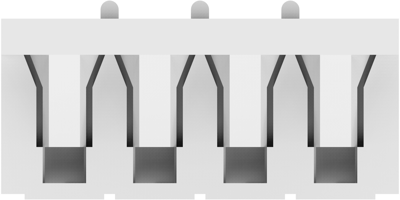

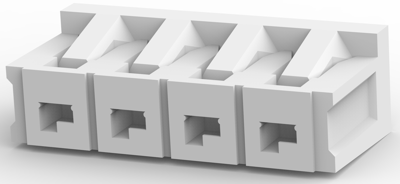

Pin header, 4 pole, pitch 2.5 mm, straight, natural, 172520-4
Unit Price (€ / pc.)
0.0833 € *
Available in 5 Days: 849,607 pcs. - if ordered today
Total Price:
249.90 € *
Price list
Quantity
Price per unit*
3000 pcs.
0.0833 €
6000 pcs.
0.0809 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 172520-4, AMP
Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 4 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: Nylon - GF
- Housing Color: natural
- Orientation: straight
- Number of positions: 4
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Centerline (Pitch): 2.5 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.5 mm | |
| Pin number | 4 pole | |
| Colour | natural | |
| Connection plating | pre-tinned | |
| Contact type | pin | |
| Version | pin header | |
| Connection | solder pin | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Rated voltage | 250 V | |
| contact surface | pre-tinned | |
| Breakable | No | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
