172339-1 | AMP

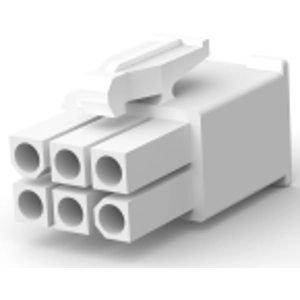

Plug housing, 6 pole, pitch 4.2 mm, straight, natural, 172339-1
Unit Price (€ / pc.)
0.4522 € *
Standard delivery time from the manufacturer is: 20 Weeks
PCB Connection System, 172339-1, AMP
Wire-to-Wire, Wire & Cable, 6 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon 6/6
- Housing Color: natural
- Orientation: straight
- Number of positions: 6
- Operating Temperature Range: -20 – 105 °C [-4 – 221 °F]
- Centerline (Pitch): 4.2 mm
- Row-to-Row Spacing: 4.2 mm [0.163 in]
- Sealable: No
Technical specifications
| Orientation | straight | |
| Number of rows | 2 | |
| Type of locking | Yes | |
| Colour | natural | |
| Connection | crimp connection | |
| Rated voltage | 600 V | |
| Contact type | socket/pin | |
| Grid | 4.2 mm | |
| Rated current | 9.5 A | |
| Pin number | 6 pole | |
| Version | plug housing | |
| Additional parts | unequipped |
Download
Logistics
| Customs tariff number | 85472000 |
| Country of origin | TH |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
