172330-1 | AMP

Socket housing, 4 pole, pitch 4.14 mm, straight, natural, 172330-1

Order No.: 34P9604
EAN: 4099889920543
MPN:
172330-1

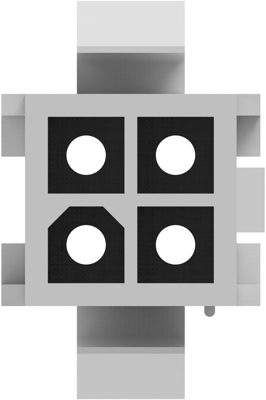

172330-1 AMP PCB Connection Systems Image 1

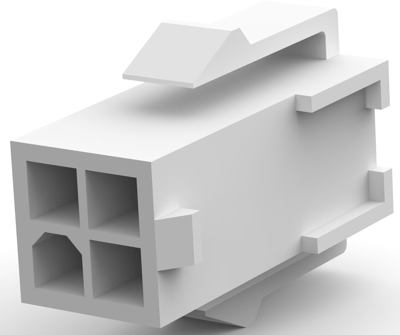

172330-1 AMP PCB Connection Systems Image 2

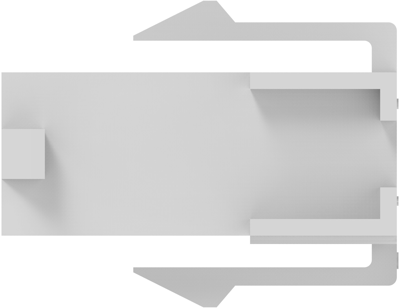

172330-1 AMP PCB Connection Systems Image 3

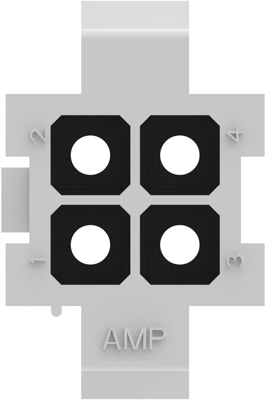

172330-1 AMP PCB Connection Systems Image 4
172330-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3808 € *
Available: 970 pcs.
Available in 5 Days: 71,246 pcs. - if ordered today
Total Price:
1.90 € *
Price list
Quantity
Price per unit*
5 pcs.
0.3808 €
10 pcs.
0.3451 €
25 pcs.
0.3213 €
50 pcs.
0.2951 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 172330-1, AMP

Wire-to-Panel, Wire-to-Wire, Wire & Cable, 4 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Male
  • Housing Material: Nylon 6/6
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 4
  • Operating Temperature Range: -20 – 105 °C [-4 – 221 °F]
  • Rated current: 9.5 A
  • Centerline (Pitch): 4.14 mm
  • Row-to-Row Spacing: 4.2 mm [0.163 in]
  • Sealable: No
Technical specifications
Filter Property Value
Grid 4.14 mm
Contact type socket/pin
Version socket housing
Rated current 9.5 A
Rated voltage 150 V
Orientation straight
Type of locking Yes
Number of rows 2
Colour natural
Pin number 4 pole
Connection crimp connection
Logistics
Property Value
Country of origin TH
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
