172211-2 | AMP

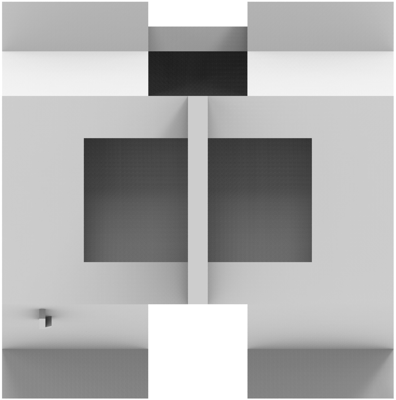

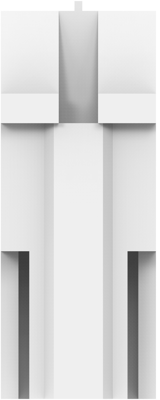

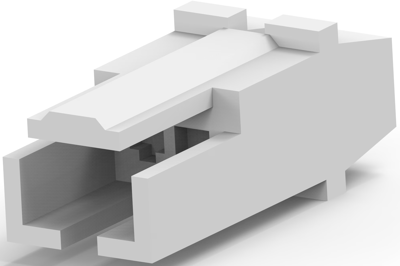

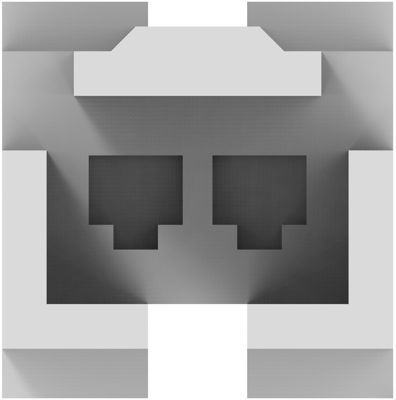

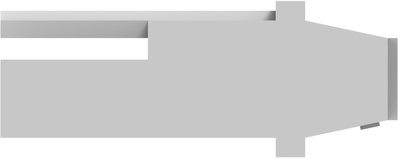

Plug housing, 2 pole, pitch 2.5 mm, straight, natural, 172211-2
Order No.: 37P1195
EAN: 4099889952209
MPN:
172211-2
Unit Price (€ / pc.)
0.2142 € *
Available in 5 Days: 38,404 pcs. - if ordered today
PCB Connection System, 172211-2, AMP
Wire-to-Board, Wire & Cable, 2 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Housing Material: Nylon 6/6
- Housing Color: natural
- Number of positions: 2
- Operating Temperature Range: -20 – 95 °C [-4 – 203 °F]
- Insulation Resistance: 500 MΩ
- Centerline (Pitch): 2.5 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 2 A | |
| Additional parts | unequipped | |
| Version | plug housing | |
| Orientation | straight | |
| Grid | 2.5 mm | |
| Type of locking | Yes | |
| Number of rows | 1 | |
| Contact type | pin | |
| Colour | natural | |
| Pin number | 2 pole | |
| Connection | crimp connection | |
| Rated voltage | 150 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Melamine |
