172168-1 | AMP

Plug housing, 6 pole, pitch 4.2 mm, straight, natural, 172168-1

Order No.: 71F828
EAN: 4099891012014
MPN:
172168-1
0-0172168-1

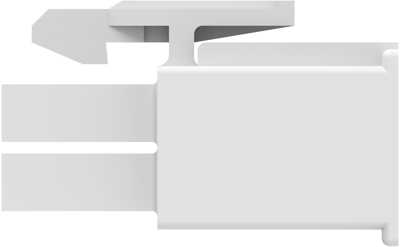

172168-1 AMP PCB Connection Systems Image 1

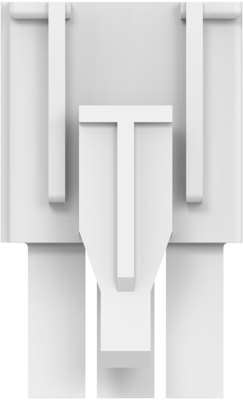

172168-1 AMP PCB Connection Systems Image 2

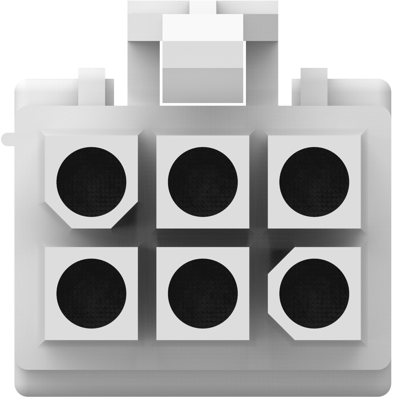

172168-1 AMP PCB Connection Systems Image 3

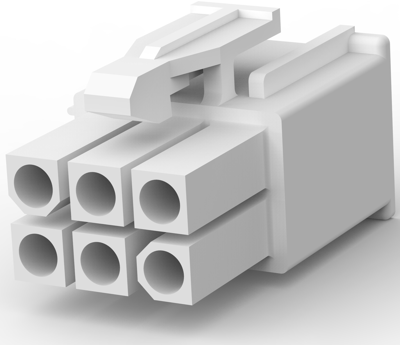

172168-1 AMP PCB Connection Systems Image 4

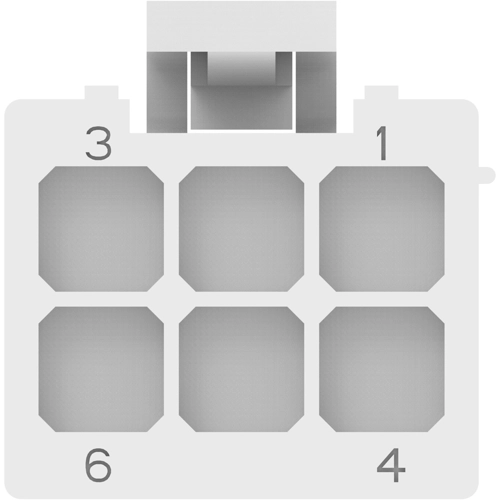

172168-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.8092 € *
Next delivery: 704 pcs. on 2025-09-25
Available in 5 Days: 12,234 pcs. - if ordered today
Total Price:
4.05 € *
Price list
Quantity
Price per unit*
5 pcs.
0.8092 €
10 pcs.
0.7497 €
25 pcs.
0.7021 €
50 pcs.
0.6307 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable connectors, bare, 1 to 15 poles, series Mini-Universal-Mate-N-Lok, type TE Connectivity/AMP 0-017.

Made of polyamide 6.6, plain-colored, compliant with UL 94 V-0; Housing: polarized and lockable in the cut-out. With plug/receptacle housing for mixed assembly. Contact pitch: 4.2 mm. Current rating: max. 5.0 A. Operating voltage: 300 VAC. Operating temperatures: –20 to +95 °C. The crimp snap-in contacts are described below.

Connector housings, interlocking with receptacle housing, type 0-017.

Type: 0-0172168-1, 6-pole

Technical specifications
Filter Property Value
Grid 4.2 mm
Contact type socket/pin
Version plug housing
Rated current 9.5 A
Rated voltage 600 V
Orientation straight
Type of locking Yes
Additional parts unequipped
Number of rows 2
Colour natural
Pin number 6 pole
Connection crimp connection
Logistics
Property Value
Country of origin TH
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
