172167-1 | AMP

Plug housing, 4 pole, pitch 4.14 mm, straight, natural, 172167-1

Order No.: 71F826
EAN: 4099891012007
MPN:
172167-1
0-0172167-1

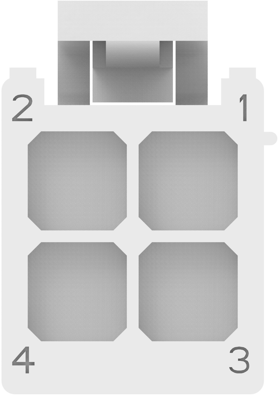

172167-1 AMP PCB Connection Systems Image 1

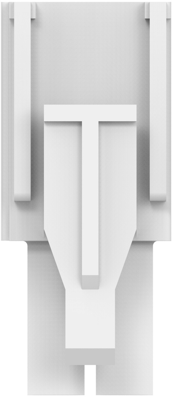

172167-1 AMP PCB Connection Systems Image 2

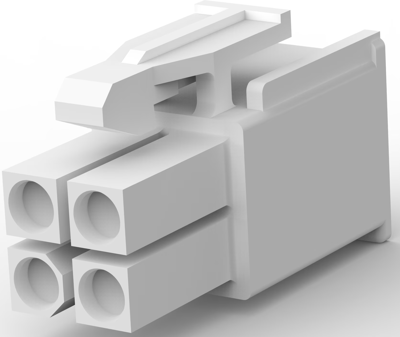

172167-1 AMP PCB Connection Systems Image 3

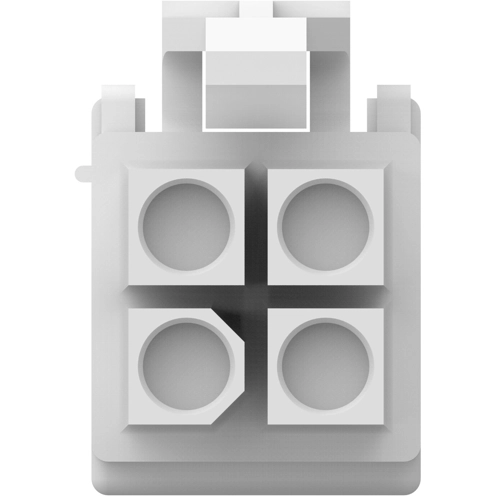

172167-1 AMP PCB Connection Systems Image 4
172167-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.6426 € *
Available in 5 Days: 20,213 pcs. - if ordered today
Total Price:
3.21 € *
Price list
Quantity
Price per unit*
5 pcs.
0.6426 €
10 pcs.
0.5950 €
25 pcs.
0.5593 €
50 pcs.
0.5117 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable connectors, bare, 1 to 15 poles, series Mini-Universal-Mate-N-Lok, type TE Connectivity/AMP 0-017.

Made of polyamide 6.6, plain-colored, compliant with UL 94 V-0; Housing: polarized and lockable in the cut-out. With plug/receptacle housing for mixed assembly. Contact pitch: 4.2 mm. Current rating: max. 5.0 A. Operating voltage: 300 VAC. Operating temperatures: –20 to +95 °C. The crimp snap-in contacts are described below.

Connector housings, interlocking with receptacle housing, type 0-017.

Type: 0-0172167-1, 4-pole

Technical specifications
Filter Property Value
Pin number 4 pole
Number of rows 2
Type of locking Yes
Colour natural
Rated current 9.5 A
Connection crimp connection
Orientation straight
Additional parts unequipped
Rated voltage 600 V
Contact type socket/pin
Grid 4.14 mm
Version plug housing
Logistics
Property Value
Country of origin TH
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
