172162-1 | AMP

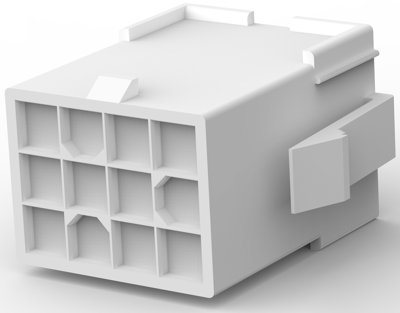

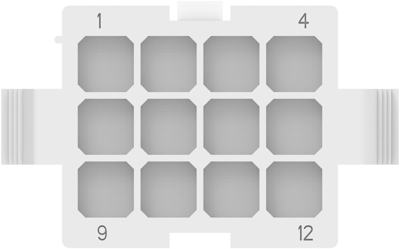

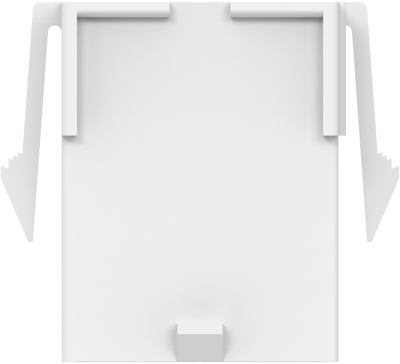

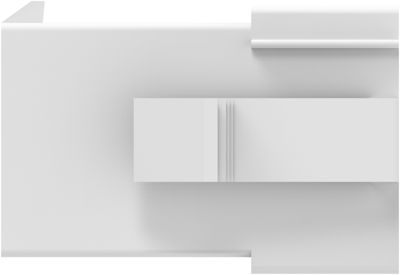

Socket housing, 12 pole, pitch 4.2 mm, straight, natural, 172162-1
Unit Price (€ / pc.)
0.8687 € *
Available: 472 pcs.
Available in 5 Days: 1,976 pcs.
Leadtime: 19 Weeks **
Total Price:
0.87 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8687 €
10 pcs.
0.7973 €
50 pcs.
0.7259 €
100 pcs.
0.6545 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable connectors, bare, 1 to 15 poles, series Mini-Universal-Mate-N-Lok, type TE Connectivity/AMP 0-017.
Made of polyamide 6.6, plain-colored, compliant with UL 94 V-0; Housing: polarized and lockable in the cut-out. With plug/receptacle housing for mixed assembly. Contact pitch: 4.2 mm. Current rating: max. 5.0 A. Operating voltage: 300 VAC. Operating temperatures: –20 to +95 °C. The crimp snap-in contacts are described below.
Receptacle housing, interlocking with connector housing, type 0-017.
Type: 0-0172162-1, 12-pole
Technical specifications
| Colour | natural | |
| Type of locking | Yes | |
| Rated current | 9.5 A | |
| Grid | 4.2 mm | |
| Pin number | 12 pole | |
| Version | socket housing | |
| Orientation | straight | |
| Connection | crimp connection | |
| Contact type | socket/pin | |
| Rated voltage | 600 V | |
| Number of rows | 3 |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85472000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
