171822-4 | AMP

Socket housing, 4 pole, pitch 2.5 mm, straight, natural, 171822-4

Order No.: 37P1187
EAN: 4099889952124
MPN:
171822-4

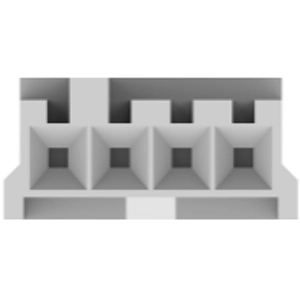

171822-4 AMP PCB Connection Systems Image 1
171822-4 AMP PCB Connection Systems Image 2
171822-4 AMP PCB Connection Systems Image 3
171822-4 AMP PCB Connection Systems Image 4
171822-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2059 € *
Available: 900 pcs.
Available in 5 Days: 63,929 pcs. - if ordered today
Total Price:
20.59 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2059 €
250 pcs.
0.1904 €
500 pcs.
0.1761 €
1000 pcs.
0.1595 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 171822-4, AMP

Wire-to-Board, Wire & Cable, 4 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon 6/6
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 4
  • Operating Temperature Range: -20 – 95 °C [-4 – 203 °F]
  • Insulation Resistance: 500 MΩ
  • Centerline (Pitch): 2.5 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Grid 2.5 mm
Contact type socket
Version socket housing
Rated current 2 A
Rated voltage 150 V
Orientation straight
Type of locking Yes
Additional parts unequipped
Number of rows 1
Colour natural
Pin number 4 pole
Connection crimp connection
Logistics
Property Value
Country of origin TH
Customs tariff number 85472000
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Melamine
