171822-3 | AMP

Socket housing, 3 pole, pitch 2.5 mm, straight, natural, 171822-3

Order No.: 37P1212
EAN: 4099889952360
MPN:
171822-3

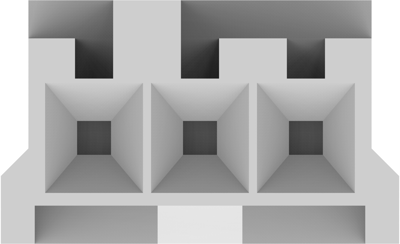

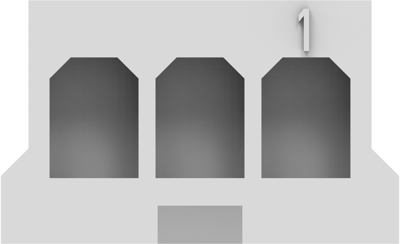

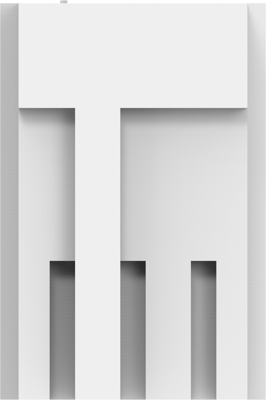

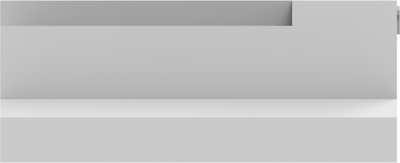

171822-3 AMP PCB Connection Systems Image 1
171822-3 AMP PCB Connection Systems Image 2
171822-3 AMP PCB Connection Systems Image 3
171822-3 AMP PCB Connection Systems Image 4
171822-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.1488 € *
Available: 1,850 pcs.
Available in 5 Days: 47,186 pcs. - if ordered today
Total Price:
0.15 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1488 €
10 pcs.
0.1369 €
50 pcs.
0.1273 €
100 pcs.
0.1154 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 171822-3, AMP

Wire-to-Board, Wire & Cable, 3 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon 6/6
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 3
  • Operating Temperature Range: -20 – 95 °C [-4 – 203 °F]
  • Insulation Resistance: 500 MΩ
  • Centerline (Pitch): 2.5 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Contact type socket
Pin number 3 pole
Grid 2.5 mm
Colour natural
Version socket housing
Connection crimp connection
Rated voltage 150 V
Rated current 2 A
Orientation straight
Number of rows 1
Additional parts unequipped
Type of locking Yes
Logistics
Property Value
Customs tariff number 85472000
Country of origin TH
Compliance
Property Value
RoHS conform Yes
Substance description Melamine
SVHC free No
Date of RoHS guidelines 3/31/15
