1674231-1 | AMP

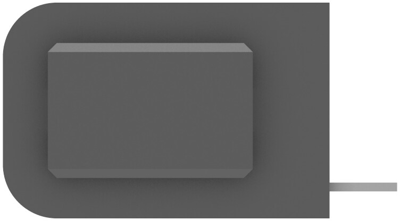

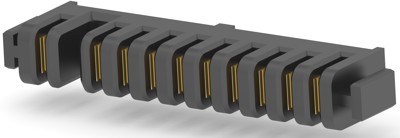

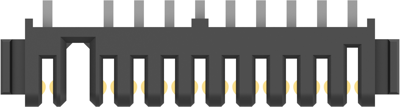

Socket header, 10 pole, pitch 2.5 mm, straight, black, 1674231-1
Order No.: 37P1553
EAN: 4099889953008
MPN:
1674231-1
Unit Price (€ / pc.)
2.2491 € *
Standard delivery time from the manufacturer is: 12 Weeks
PCB Connection System, 1674231-1, AMP
Board-to-Board, Printed Circuit Board, Vertical, 10 Position
Technical Data
- Connector Mounting Type: Board Mount
- Orientation: straight
- Number of positions: 10
- Operating Temperature Range: -20 – 80 °C [-4 – 176 °F]
- Rated current: 6 A
- Centerline (Pitch): 2.5 mm
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Rated current | 6 A | |
| Grid | 2.5 mm | |
| Pin number | 10 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | solder pin | |
| Contact type | socket | |
| Rated voltage | 150 V | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
