1658622-5 | AMP

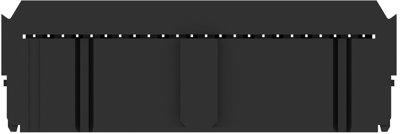

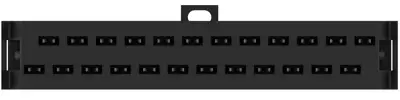

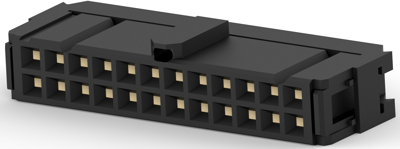

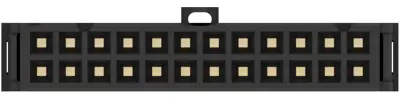

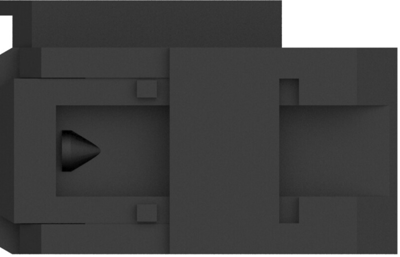

Socket header, 24 pole, pitch 2.54 mm, straight, black, 1658622-5
Unit Price (€ / pc.)
2.6299 € *
Available in 5 Days: 4,400 pcs. - if ordered today
Total Price:
2.63 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6299 €
10 pcs.
2.4395 €
25 pcs.
2.2848 €
50 pcs.
2.0706 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1658622-5, AMP
Wire-to-Board, Wire & Cable, Vertical, 24 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Contact Base Material: Phosphor Bronze
- Housing Material: Thermoplastic
- Housing Color: black
- Orientation: straight
- Number of positions: 24
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- PCB Mount Retention: Without
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | gold-plated | |
| Orientation | straight | |
| Number of rows | 2 | |
| Colour | black | |
| Connection | PCB connection | |
| Rated voltage | 150 V | |
| Contact type | socket | |
| Grid | 2.54 mm | |
| Connection plating | gold-plated | |
| Rated current | 1 A | |
| Pin number | 24 pole | |
| Version | socket header | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
