1658622-4 | AMP

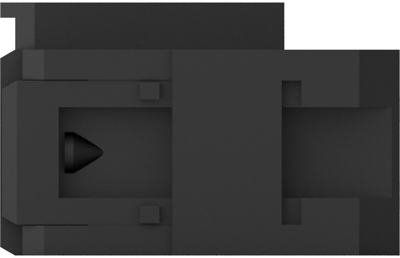

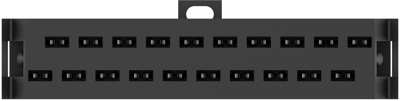

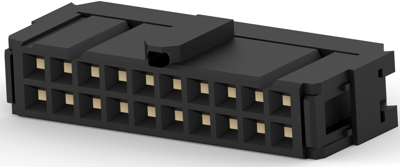

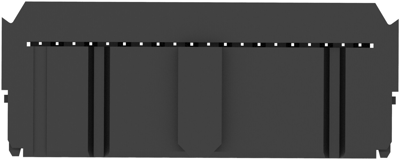

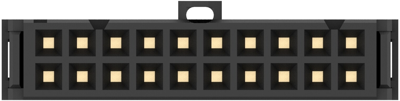

Socket header, 20 pole, pitch 2.54 mm, straight, black, 1658622-4
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
2.4038 € *
Available in 12 Days: 6,900 pcs. - if ordered today
Total Price:
2.40 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4038 €
10 pcs.
2.2253 €
50 pcs.
2.0706 €
100 pcs.
1.9397 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket strip, 1658622-4, AMP
Wire-to-Board, 20-Positions, 2.54 mm Centerline, Vertical, Through Hole - Solder, 2 Row, Receptacle.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| Contact type | socket | |
| Pin number | 20 pole | |
| Grid | 2.54 mm | |
| Connection | PCB connection | |
| Orientation | straight | |
| contact surface | gold-plated | |
| Connection plating | gold-plated | |
| Rated voltage | 150 V | |
| Rated current | 1 A | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
