1658622-1 | AMP

Socket housing, 10 pole, pitch 2.54 mm, straight, black, 1658622-1

Order No.: 36P5439
EAN: 4099889943412
MPN:
1658622-1
Series: AMP-LATCH

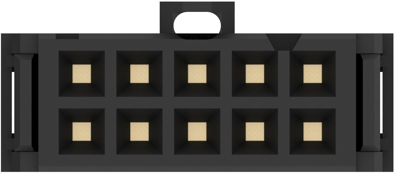

1658622-1 AMP PCB Connection Systems Image 1

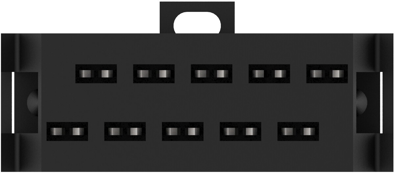

1658622-1 AMP PCB Connection Systems Image 2

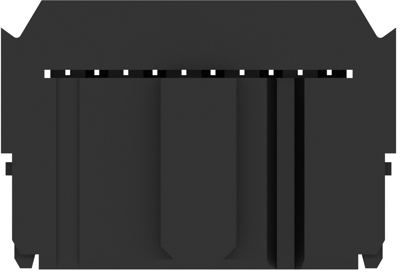

1658622-1 AMP PCB Connection Systems Image 3

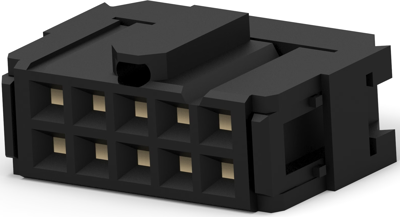

1658622-1 AMP PCB Connection Systems Image 4

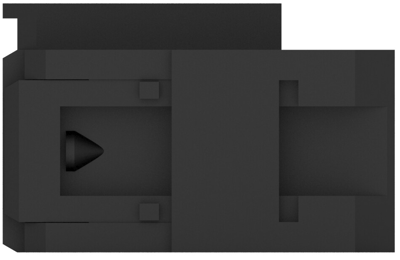

1658622-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.3328 € *
Available: 20 pcs.
Available in 5 Days: 3,700 pcs. - if ordered today
Total Price:
6.66 € *
Price list
Quantity
Price per unit*
5 pcs.
1.3328 €
10 pcs.
1.2376 €
25 pcs.
1.1543 €
50 pcs.
1.0472 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1658622-1, AMP

Wire-to-Board, Wire & Cable, Vertical, 10 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Contact Base Material: Phosphor Bronze
  • Housing Material: Thermoplastic
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 10
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
Technical specifications
Filter Property Value
Grid 2.54 mm
Contact type socket
Connection plating gold-plated
contact surface gold-plated
Version socket housing
Rated current 1 A
Rated voltage 150 V
Orientation straight
Additional parts equipped
Number of rows 2
Colour black
Pin number 10 pole
Connection IDC connection
Logistics
Property Value
Country of origin TN
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
