1658621-8 | AMP

Socket header, 34 pole, pitch 2.54 mm, straight, black, 1658621-8

Order No.: 36P5468
EAN: 4099889943580
MPN:
1658621-8
Series: AMP-LATCH

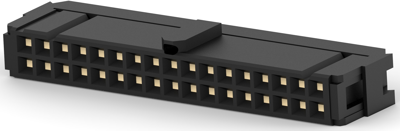

1658621-8 AMP PCB Connection Systems Image 1

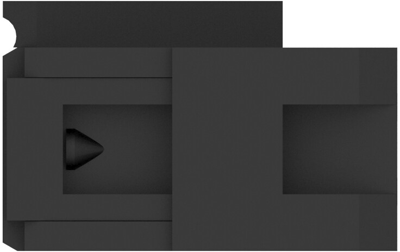

1658621-8 AMP PCB Connection Systems Image 2

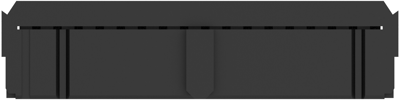

1658621-8 AMP PCB Connection Systems Image 3

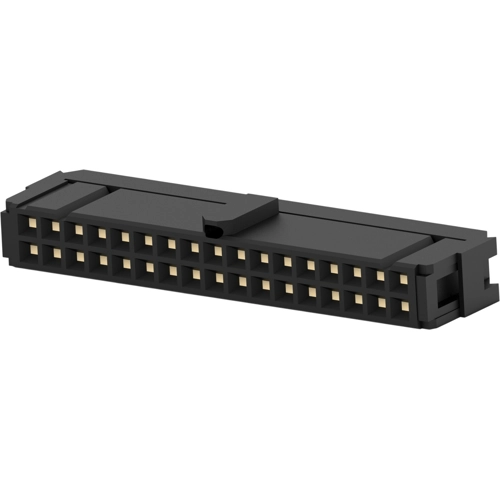

1658621-8 AMP PCB Connection Systems Image 4
1658621-8 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.8560 € *
Available: 2 pcs.
Available in 5 Days: 6,267 pcs. - if ordered today
Total Price:
2.86 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8560 €
10 pcs.
2.6537 €
25 pcs.
2.4752 €
50 pcs.
2.2491 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1658621-8, AMP

Wire-to-Board, Wire & Cable, Vertical, 34 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Contact Base Material: Phosphor Bronze
  • Housing Material: Thermoplastic
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 34
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
Technical specifications
Filter Property Value
Version socket header
Colour black
Pin number 34 pole
Additional parts equipped
Connection PCB connection
Connection plating gold-plated
Rated voltage 150 V
Contact type socket
Rated current 1 A
contact surface gold-plated
Orientation straight
Grid 2.54 mm
Number of rows 2
Logistics
Property Value
Country of origin BE
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
