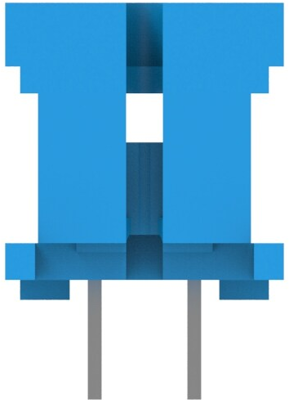

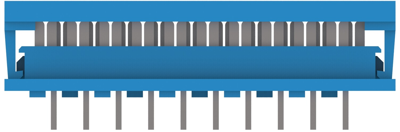

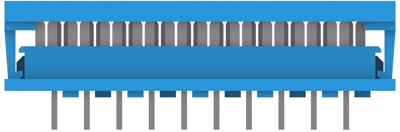

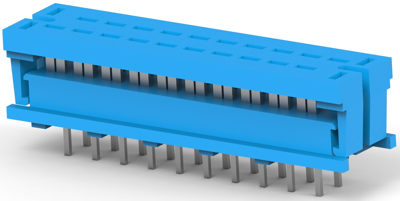

1658525-9 | AMP
Pin header, 20 pole, pitch 2.54 mm, straight, blue, 1658525-9
Unit Price (€ / pc.)
15.0297 € *
Available in 5 Days: 3,941 pcs. - if ordered today
Total Price:
15.03 € *
Price list
Quantity
Price per unit*
1 pcs.
15.0297 €
10 pcs.
13.8278 €
50 pcs.
12.4355 €
100 pcs.
11.1979 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1658525-9, AMP
Wire-to-Board, Printed Circuit Board, Wire & Cable, Vertical, 20 Position
Technical Data
- Connector Mounting Type: Board Mount
- Housing Color: blue
- Orientation: straight
- Number of positions: 20
- Operating Temperature Range: -55 – 125 °C [-67 – 257 °F]
- Rated current: 1 A
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- PCB Mount Retention: Without
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | tin-plated | |
| Version | pin header | |
| Grid | 2.54 mm | |
| Contact type | pin | |
| Connection | IDC connection | |
| Colour | blue | |
| Connection plating | tin-plated | |
| Type of locking | Yes | |
| Rated voltage | 150 V | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Pin number | 20 pole | |
| Orientation | straight | |
| Rated current | 1 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
