1658391-2 | AMP

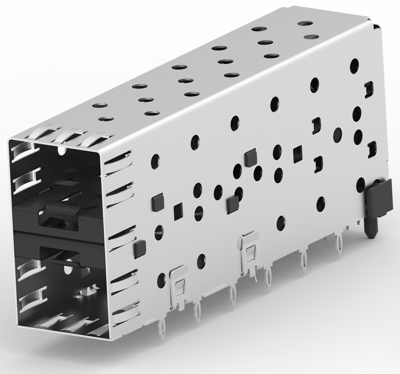

Cage with integrated plug, 40 pole, pitch 0.8 mm, angled, 1658391-2
Order No.: 37P2512
EAN: 4099889824407
MPN:
1658391-2
Unit Price (€ / pc.)
22.0864 € *
Available in 5 Days: 4,910 pcs. - if ordered today
Total Price:
22.09 € *
Price list
Quantity
Price per unit*
1 pcs.
22.0864 €
5 pcs.
20.9440 €
10 pcs.
19.5993 €
25 pcs.
17.8619 €
*incl. VAT plus shipping costs
Subject to prior sale
SFP/SFP+/zSFP+, 1658391-2, AMP
Cage Type: Stacked, Pluggable I/O Product Type: Cage Assembly with Integrated Connector, Integrated Lightpipes: No, Connector System: Cable-to-Board, Sealable: No, Port Matrix Configuration: 2 x 1, Number of Ports: 2, Number of Positions: 40, Data Rate (Max): 4 Gb/s, Contact Current Rating (Max): .5 A, Termination Method to Printed Circuit Board: Through Hole - Press-Fit, PCB Mounting Style: Through Hole - Press-Fit, Connector Mounting Type: Board Mount, Centerline (Pitch): .8 mm, Operating Temperature Range: -55 – 105 °C, Pluggable I/O Applications: SFP, Circuit Application: Signal, EMI Containment Feature Type: EMI Springs, Included Lightpipe: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 0.5 A | |
| Grid | 0.8 mm | |
| Pin number | 40 pole | |
| Version | cage with integrated plug | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | press-fit | |
| Contact type | socket | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TN |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
