1658043-1 | AMP

Socket header, 40 pole, pitch 0.8 mm, straight, black, 1658043-1

Order No.: 36P9434
EAN: 4099889950328
MPN:
1658043-1

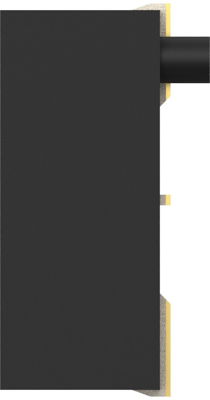

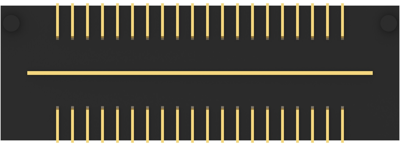

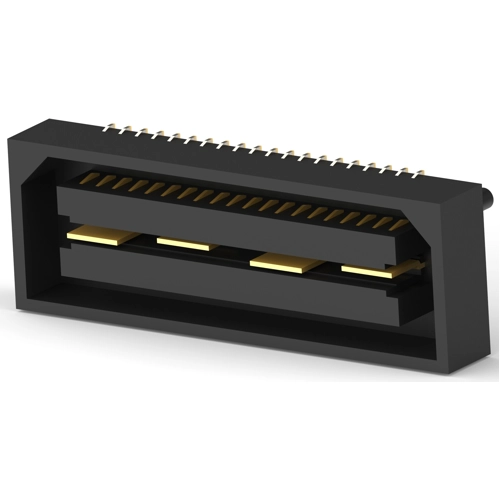

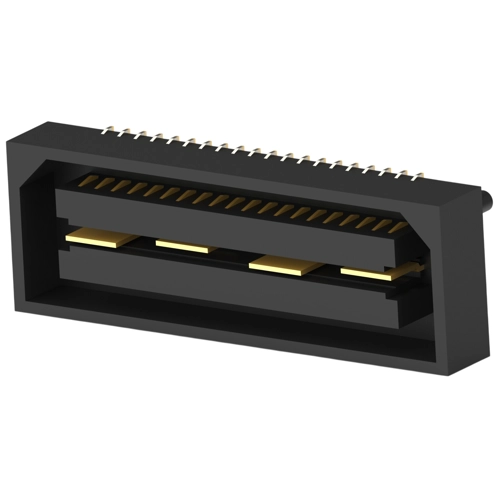

1658043-1 AMP PCB Connection Systems Image 1
1658043-1 AMP PCB Connection Systems Image 2
1658043-1 AMP PCB Connection Systems Image 3
1658043-1 AMP PCB Connection Systems Image 4
1658043-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
8.7822 € *
Available in 5 Days: 358 pcs. - if ordered today
Total Price:
8.78 € *
Price list
Quantity
Price per unit*
1 pcs.
8.7822 €
10 pcs.
8.0801 €
50 pcs.
7.2709 €
100 pcs.
6.5450 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1658043-1, AMP

Board-to-Board, Printed Circuit Board, Vertical, 40 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Female
  • Contact Base Material: Phosphor Bronze
  • Housing Material: LCP (Liquid Crystal Polymer)
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 40
  • Operating Temperature Range: -65 – 125 °C [-85 – 257 °F]
  • Insulation Resistance: 2 MΩ
  • Centerline (Pitch): 0.8 mm
  • PCB Mount Retention: With
  • Sealable: No
Technical specifications
Colour black
Type of locking Yes
contact surface gold-plated
Rated current 9.5 A
Grid 0.8 mm
Connection plating gold-plated
Pin number 40 pole
Version socket header
Additional parts equipped
Orientation straight
Connection SMD
Contact type socket
Rated voltage 150 V
Number of rows 2
Logistics
Country of origin DE
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
