1658019-1 | AMP

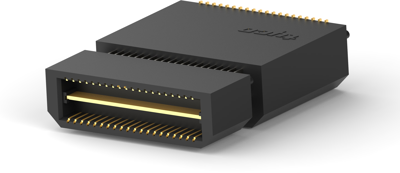

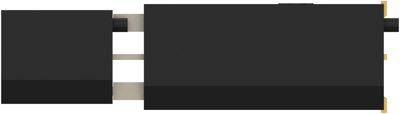

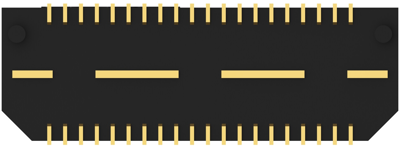

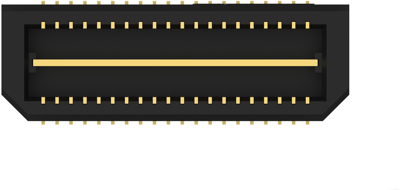

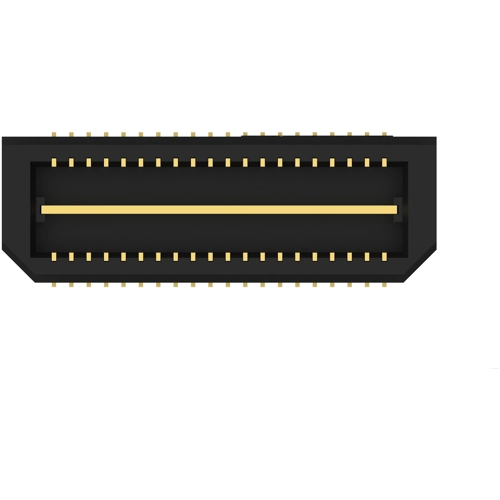

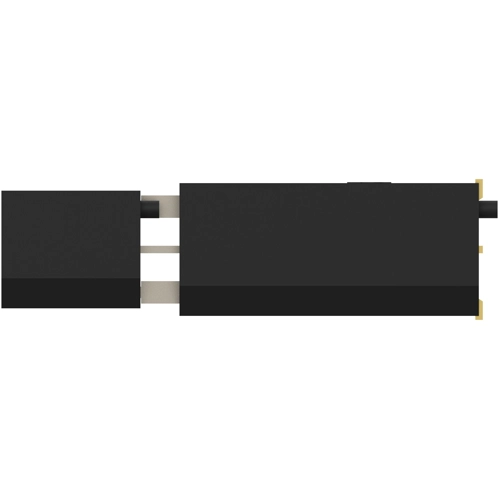

Pin header, 40 pole, pitch 0.8 mm, straight, black, 1658019-1
Order No.: 59F360
MPN:
1658019-1
Unit Price (€ / pc.)
15.6604 € *
Available in 5 Days: 292 pcs. - if ordered today
Total Price:
15.66 € *
Price list
Quantity
Price per unit*
1 pcs.
15.6604 €
5 pcs.
14.8512 €
10 pcs.
13.8992 €
25 pcs.
12.6735 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB connector, 1658019-1, AMP
PCB mount header, vertical, Board-to-Board, 40 Positions, 0.8 mm centerline, Gold (Au), Oberflächenmontage, Power and Signal, Black.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 40 pole | |
| Grid | 0.8 mm | |
| Connection | solder connection | |
| Orientation | straight | |
| contact surface | gold-plated | |
| Connection plating | gold-plated | |
| Rated voltage | 125 V | |
| Rated current | 9.5 A | |
| Number of rows | 2 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
