1658018-2 | AMP

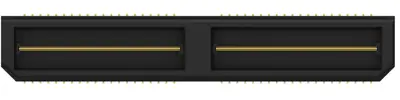

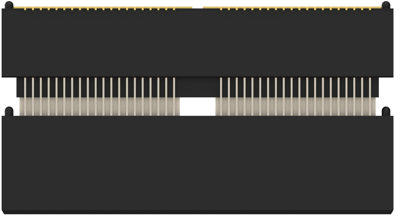

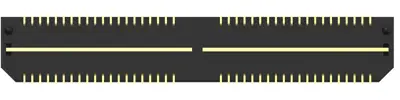

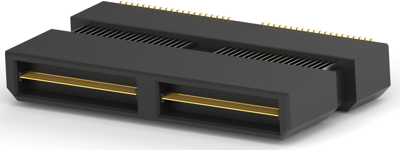

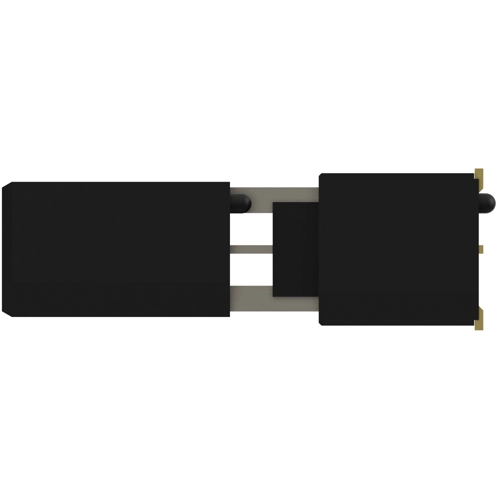

Pin header, 80 pole, pitch 0.8 mm, straight, black, 1658018-2
Order No.: 71P3041
EAN: 4099891721800
MPN:
1658018-2
Unit Price (€ / pc.)
27.0844 € *
Available in 5 Days: 225 pcs. - if ordered today
Total Price:
27.08 € *
Price list
Quantity
Price per unit*
1 pcs.
27.0844 €
2 pcs.
25.3351 €
5 pcs.
23.8000 €
10 pcs.
22.1221 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Header, 1658018-2, AMP
The 1658018-2is based on the concept of two rows of signal contacts divided by a center power ground plane. This product uses the solid ground bus between the rows of signals to provide low crosstalk and excellent high-speed signal characteristics.
Features
- Connector housing polarized for correct mating
- Infrared and forced air convection compatible housing material
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 80 pole | |
| Grid | 0.8 mm | |
| Connection | SMD | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Connection plating | gold-plated | |
| Rated voltage | 125 V | |
| Rated current | 9.5 A | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
