1658017-3 | AMP

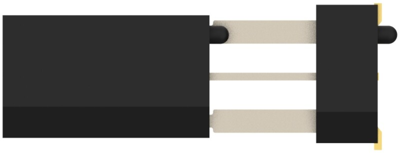

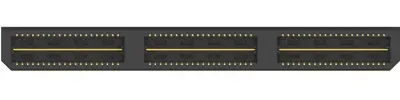

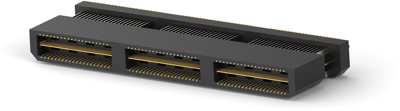

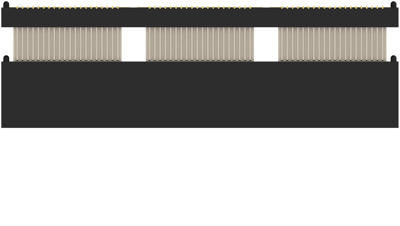

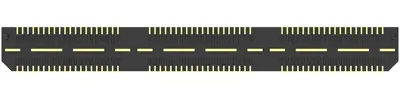

Pin header, 120 pole, pitch 0.8 mm, straight, black, 1658017-3
Order No.: 59F359
MPN:
1658017-3
Unit Price (€ / pc.)
33.4628 € *
Available: 0 pcs.
Available in 5 Days: 20 pcs.
Leadtime: 13 Weeks **
PCB connector, 1658017-3, AMP
PCB mount header, vertical, Board-to-Board, 120 Positions, 0.8 mm centerline, Gold (Au), Oberflächenmontage, Power and Signal, Black.
Technical specifications
| Colour | black | |
| contact surface | gold-plated | |
| Rated current | 9.5 A | |
| Grid | 0.8 mm | |
| Connection plating | gold-plated | |
| Pin number | 120 pole | |
| Version | pin header | |
| Orientation | straight | |
| Connection | solder connection | |
| Contact type | pin | |
| Rated voltage | 125 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
