1658016-1 | AMP

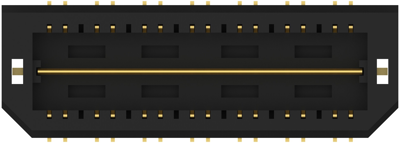

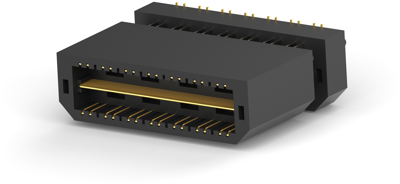

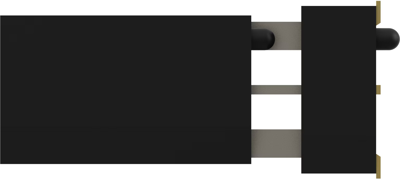

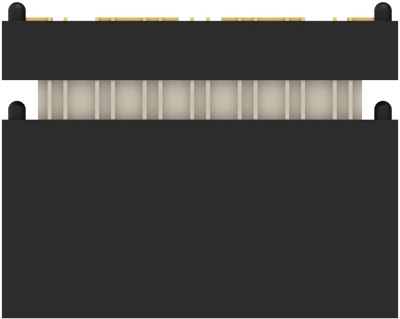

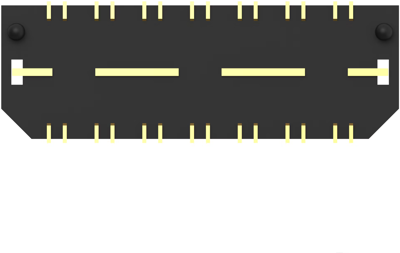

Pin header, 40 pole, pitch 0.8 mm, straight, black, 1658016-1
Order No.: 59F358
MPN:
1658016-1
Unit Price (€ / pc.)
27.2629 € *
Available in 5 Days: 435 pcs. - if ordered today
Total Price:
27.26 € *
Price list
Quantity
Price per unit*
1 pcs.
27.2629 €
5 pcs.
25.8468 €
10 pcs.
24.1808 €
25 pcs.
22.0507 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB connector, 1658016-1, AMP
PCB mount header, vertical, Board-to-Board, 40 Positions, 0.8 mm centerline, Gold (Au), Oberflächenmontage, Power and Signal, Black.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of rows | 2 | |
| Grid | 0.8 mm | |
| Orientation | straight | |
| Pin number | 40 pole | |
| Connection | solder connection | |
| Colour | black | |
| Rated current | 9.5 A | |
| Contact type | pin | |
| Version | pin header | |
| Connection plating | gold-plated | |
| contact surface | gold-plated | |
| Rated voltage | 125 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
