1658013-1 | AMP

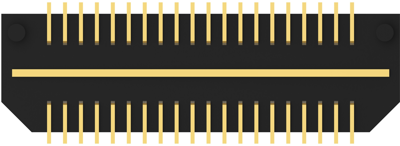

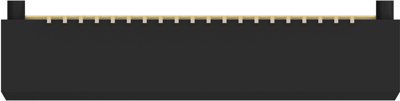

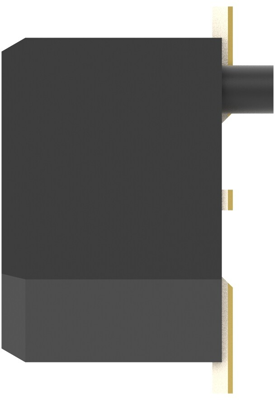

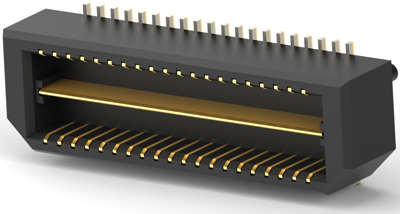

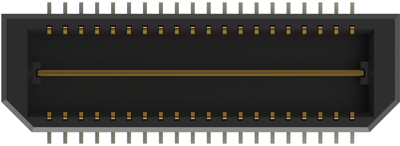

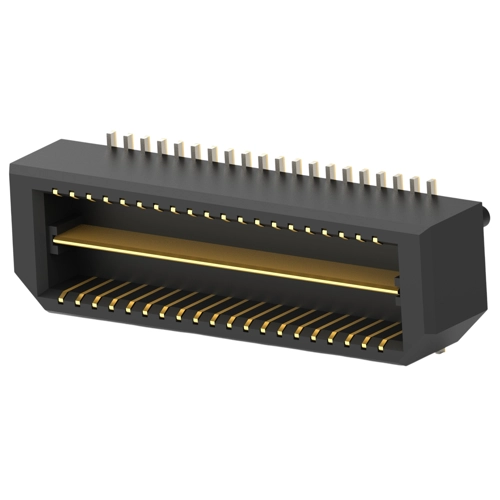

Pin header, 40 pole, pitch 0.8 mm, straight, black, 1658013-1
Order No.: 36P9420
EAN: 4099889950205
MPN:
1658013-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
8.4371 € *
Standard delivery time from the manufacturer is: 28 Weeks
Pin header, 1658013-1, AMP
PCB Mount Header, Vertical, Board-to-Board, 40-Positions, 0.8 mm Centerline, Gold (Au), Surface Mount, Power & Signal, Black.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 40 pole | |
| Grid | 0.8 mm | |
| Connection | SMD | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Connection plating | gold-plated | |
| Rated voltage | 150 V | |
| Rated current | 9.5 A | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
