1658012-4 | AMP

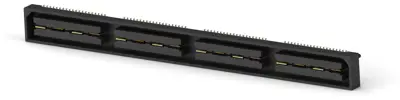

Socket header, 160 pole, pitch 0.8 mm, straight, black, 1658012-4
Order No.: 36P9443
EAN: 4099889950380
MPN:
1658012-4
Unit Price (€ / pc.)
20.6822 € *
Available in 5 Days: 84 pcs. - if ordered today
Total Price:
20.68 € *
Price list
Quantity
Price per unit*
1 pcs.
20.6822 €
5 pcs.
19.6112 €
10 pcs.
18.3498 €
25 pcs.
16.7314 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1658012-4, AMP
Board-to-Board, Printed Circuit Board, Vertical, 160 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Contact Base Material: Phosphor Bronze
- Housing Material: LCP (Liquid Crystal Polymer)
- Housing Color: black
- Orientation: straight
- Number of positions: 160
- Operating Temperature Range: -65 – 125 °C [-85 – 257 °F]
- Insulation Resistance: 2 MΩ
- Centerline (Pitch): 0.8 mm
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 9.5 A | |
| contact surface | gold-plated | |
| Colour | black | |
| Additional parts | equipped | |
| Contact type | socket | |
| Connection plating | gold-plated | |
| Grid | 0.8 mm | |
| Orientation | straight | |
| Rated voltage | 150 V | |
| Connection | SMD | |
| Pin number | 160 pole | |
| Version | socket header | |
| Type of locking | Yes | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
