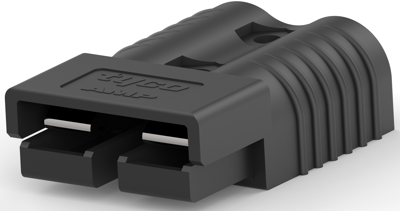

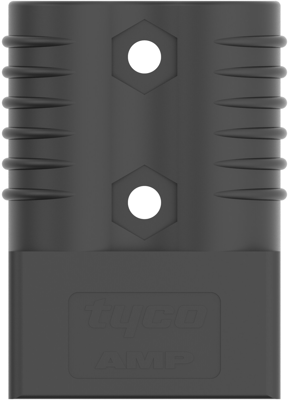

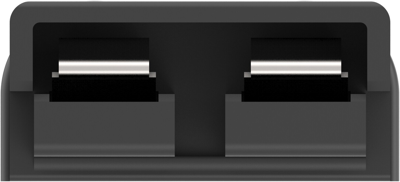

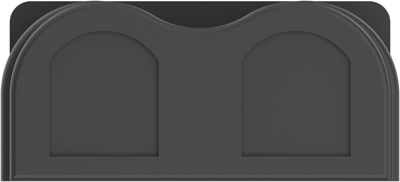

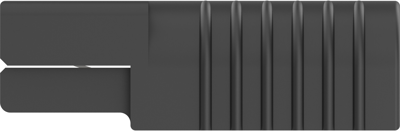

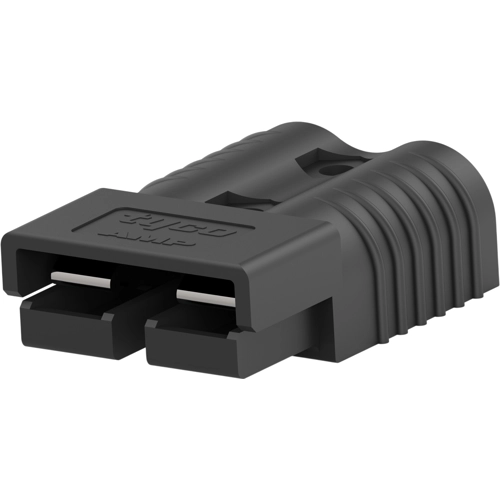

1604042-6 | AMP
Plug/socket header, 2 pole, pitch 19.06 mm, straight, black, 1604042-6
Unit Price (€ / pc.)
27.0963 € *
Standard delivery time from the manufacturer is: 20 Weeks
PCB Connection System, 1604042-6, AMP
Wire-to-Wire, Wire & Cable, 2 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female/Male
- Housing Material: Polycarbonate
- Housing Color: black
- Number of positions: 2
- Operating Temperature Range: -20 – 105 °C [-4 – 221 °F]
- Rated current: 175 A
- Centerline (Pitch): 19.06 mm
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug/socket header | |
| contact surface | silver-plated | |
| Pin number | 2 pole | |
| Type of locking | Yes | |
| Rated voltage | 600 V | |
| Connection plating | silver-plated | |
| Orientation | straight | |
| Contact type | socket/pin | |
| Grid | 19.06 mm | |
| Number of rows | 1 | |
| Additional parts | unequipped | |
| Connection | crimp connection | |
| Rated current | 175 A | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389011 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
