1604037-5 | AMP

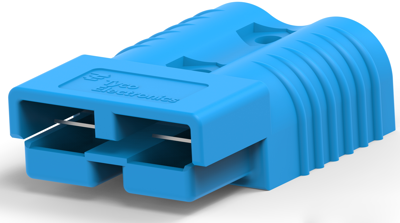

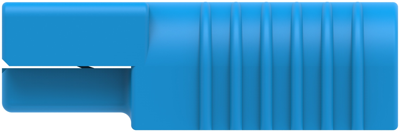

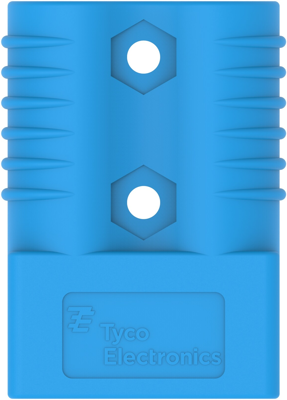

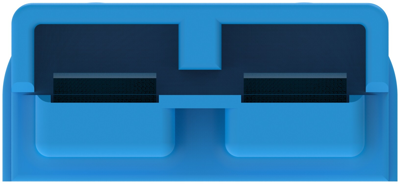

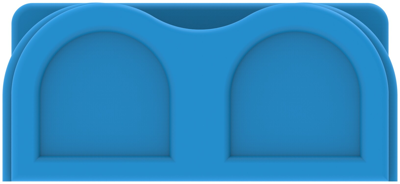

Plug/socket housing, 2 pole, pitch 19.06 mm, straight, blue, 1604037-5
Unit Price (€ / pc.)
16.6600 € *
Available in 5 Days: 131 pcs. - if ordered today
Total Price:
16.66 € *
Price list
Quantity
Price per unit*
1 pcs.
16.6600 €
10 pcs.
15.4700 €
25 pcs.
14.4347 €
50 pcs.
13.1257 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1604037-5, AMP
Wire-to-Wire, Wire & Cable, 2 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Housing Material: Polycarbonate
- Housing Color: blue
- Number of positions: 2
- Operating Temperature Range: -20 – 105 °C [-4 – 221 °F]
- Centerline (Pitch): 19.06 mm
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 19.06 mm | |
| Contact type | socket/pin | |
| Version | plug/socket housing | |
| Rated voltage | 600 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 1 | |
| Colour | blue | |
| Pin number | 2 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
