1604037-2 | AMP

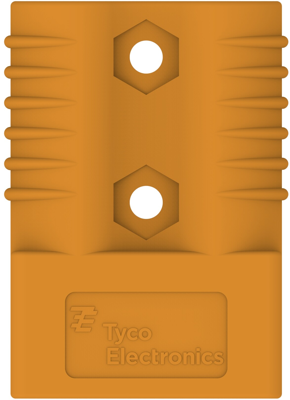

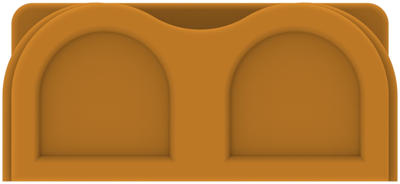

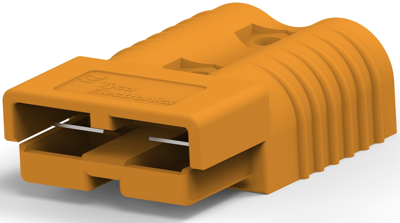

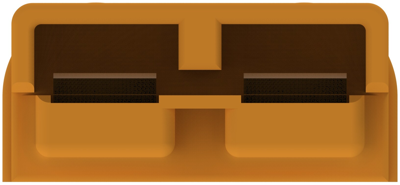

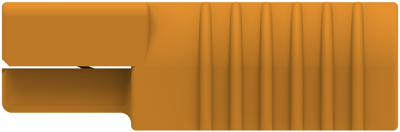

Plug/socket housing, 2 pole, pitch 19.6 mm, straight, orange, 1604037-2
Unit Price (€ / pc.)
9.6628 € *
Available in 5 Days: 1,600 pcs. - if ordered today
Total Price:
241.57 € *
Price list
Quantity
Price per unit*
25 pcs.
9.6628 €
50 pcs.
9.4843 €
*incl. VAT plus shipping costs
Subject to prior sale
Power connector, 1604037-2, AMP
The 1604037-2 is a power connector that helps prevent two different voltage color-coded housings from mating.
Features
- Genderless housings reduce inventory
- Integral stainless steel locking spring in housing for contact retention
- Reducing bushings down to 10 gauge
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug/socket housing | |
| Contact type | pin | |
| Pin number | 2 pole | |
| Grid | 19.6 mm | |
| Connection | crimp connection | |
| Orientation | straight | |
| Type of locking | Yes | |
| Rated voltage | 600 V | |
| Rated current | 175 A | |
| Number of rows | 1 | |
| Colour | orange |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
