1604037-1 | AMP

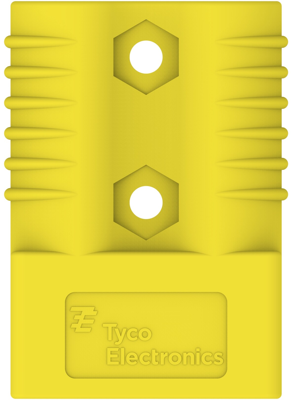

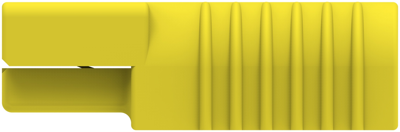

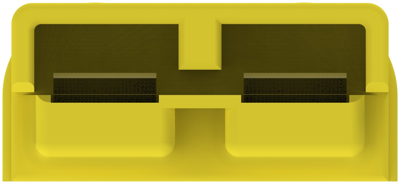

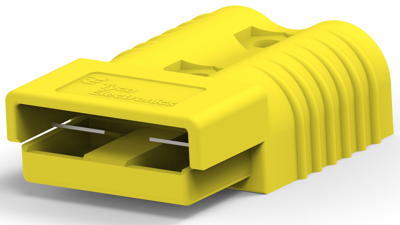

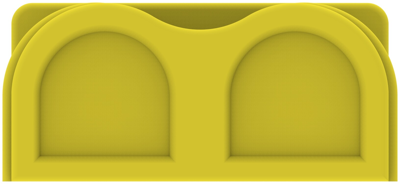

Plug/socket housing, 2 pole, pitch 19.06 mm, straight, yellow, 1604037-1
Order No.: 37P1903
EAN: 4099889953800
MPN:
1604037-1
Unit Price (€ / pc.)
10.7100 € *
Available in 5 Days: 1,590 pcs. - if ordered today
Total Price:
10.71 € *
Price list
Quantity
Price per unit*
1 pcs.
10.7100 €
10 pcs.
9.9484 €
25 pcs.
9.2820 €
50 pcs.
8.4371 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1604037-1, AMP
Wire-to-Wire, Wire & Cable, 2 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Housing Material: Polycarbonate
- Housing Color: yellow
- Number of positions: 2
- Operating Temperature Range: -20 – 105 °C [-4 – 221 °F]
- Centerline (Pitch): 19.06 mm
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 2 pole | |
| Contact type | socket/pin | |
| Type of locking | Yes | |
| Colour | yellow | |
| Rated voltage | 600 V | |
| Connection | crimp connection | |
| Grid | 19.06 mm | |
| Orientation | straight | |
| Version | plug/socket housing | |
| Additional parts | unequipped | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
