1600798-2 | AMP

Socket header, 2 pole, pitch 7.62 mm, straight, black, 1600798-2

Order No.: 37P1385
EAN: 4099889952766
MPN:
1600798-2
Series: MULTI-BEAM XL

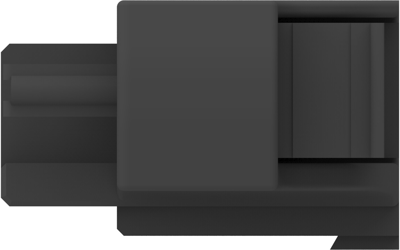

1600798-2 AMP PCB Connection Systems Image 1

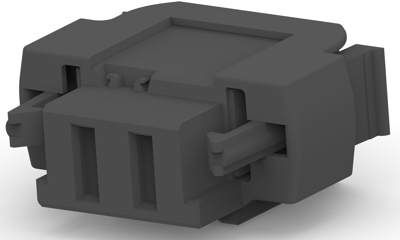

1600798-2 AMP PCB Connection Systems Image 2

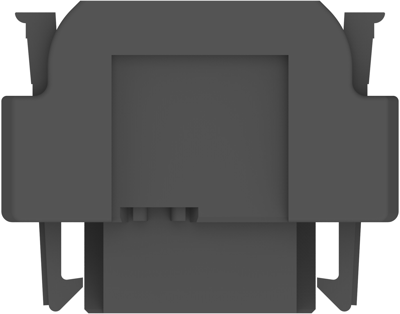

1600798-2 AMP PCB Connection Systems Image 3

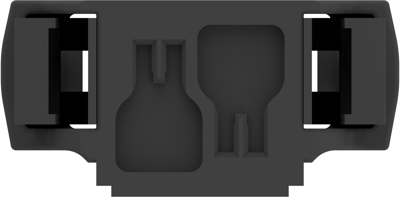

1600798-2 AMP PCB Connection Systems Image 4

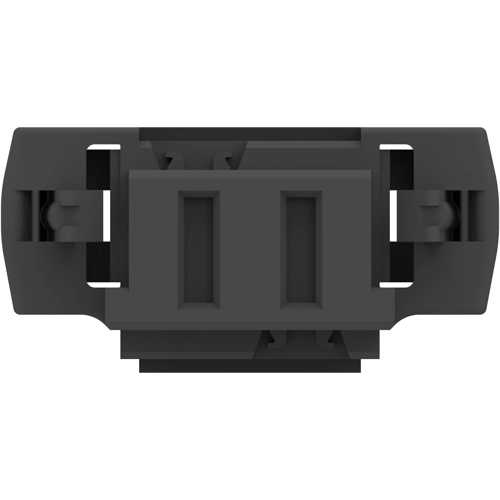

1600798-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
6.4974 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
1,091.56 € *
*incl. VAT plus shipping costs
Subject to prior sale
168 pcs.
6.4974 €

PCB Connection System, 1600798-2, AMP

Cable-to-Board,Cable-to-Panel, Printed Circuit Board, 2 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Thermoplastic
  • Housing Color: black
  • Number of positions: 2
  • Operating Temperature Range: -20 – 105 °C [-4 – 221 °F]
  • Centerline (Pitch): 7.62 mm
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Colour black
Type of locking Yes
Grid 7.62 mm
Pin number 2 pole
Version socket header
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket
Rated voltage 300 V
Number of rows 1
Logistics
Country of origin CZ
Customs tariff number 85389091
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
