1586866-1 | AMP

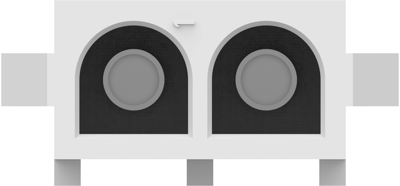

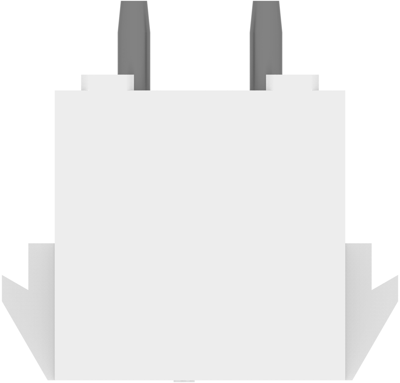

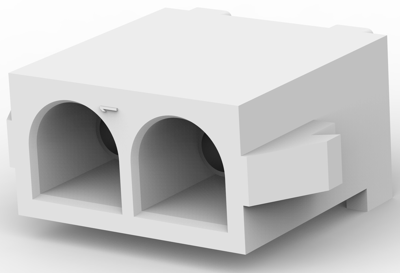

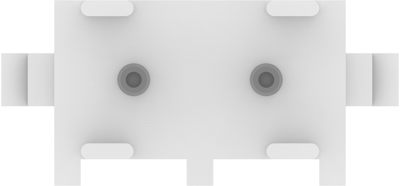

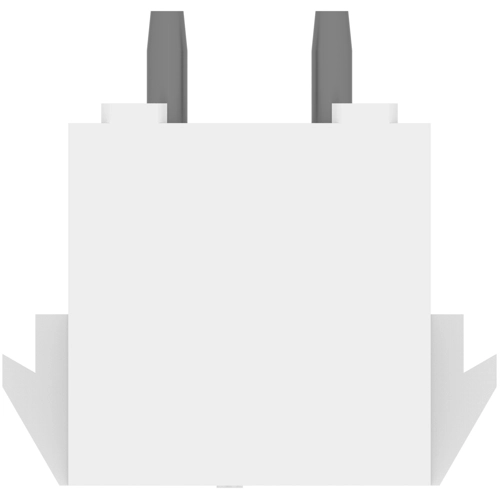

Socket header, 2 pole, pitch 6.35 mm, straight, natural, 1586866-1
Order No.: 35P4701
EAN: 4099889933895
MPN:
1586866-1
Unit Price (€ / pc.)
0.6783 € *
Standard delivery time from the manufacturer is: 21 Weeks
PCB Connection System, 1586866-1, AMP
Wire-to-Board, Printed Circuit Board, Vertical, 2 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Housing Material: Nylon
- Housing Color: natural
- Orientation: straight
- Number of positions: 2
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Rated current: 12 A
- Centerline (Pitch): 6.35 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| contact surface | pre-tinned | |
| Connection plating | pre-tinned | |
| Grid | 6.35 mm | |
| Contact type | socket | |
| Rated voltage | 150 V | |
| Type of locking | Yes | |
| Additional parts | equipped | |
| Orientation | straight | |
| Colour | natural | |
| Rated current | 12 A | |
| Connection | PCB connection | |
| Pin number | 2 pole | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
